| Place of Origin: | Henan China |
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 8-17 |

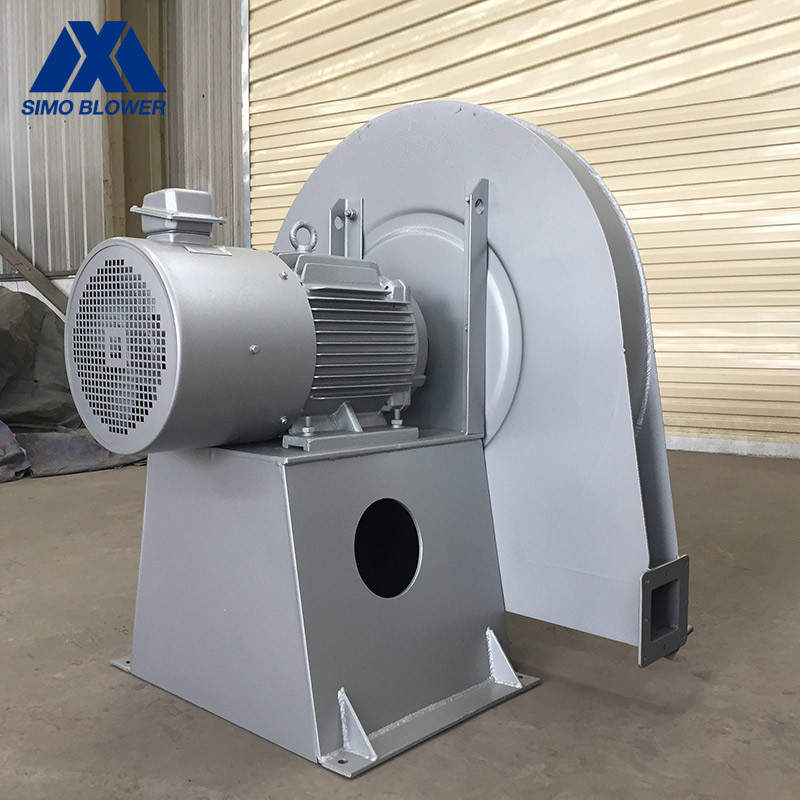

High Temperature Stokerfeed Boiler Drying Centrifugal Blower Fan
Introduction
The 8-17 series high temperature high-pressure small-flow centrifugal blower fan is designed for applications requiring high pressure.
Under the premise of ensuring a certain amount of air, the full pressure can reach the high pressure requirement.
High Temperature Stokerfeed Boiler Drying Centrifugal Blower Fan is mainly used for blasting furnace blast and other forced air supply, and can also be used for tunnels to exhaust or supply air through hard pipes.
The High Temperature Stokerfeed Boiler Drying Centrifugal Blower Fans are divided into general type, explosion-proof type, anti-corrosion type and high temperature type.
The centrifugal fan impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
After the production is completed, after running test and vibration value detection, the operation is reliable.
There are a variety of options to choose from.
Technical data
|
PRODUCT PARAMETERS
|
|||
|
Centrifugal Fan Application
|
Temperature | Normal temperature air, Hot air | |
| Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Centrifugal Fan Performance
|
Impeller diameter | 400~3500 | mm |
| Speed of mainshaft |
≤3000 |
rpm | |
| Pressure range |
3958~13916 |
Pa | |
| Flow range |
302~7968 |
m3/h | |
|
Centrifugal Fan Structure
|
Blade | Backward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | Direct | Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Centrifugal Fan System
Configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller | Q235, Q345, SS304, SS316, HG785, DB685... | ||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Centrifugal Fan Optional
Components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
||
Advantages and Features
1. High Temperature Stokerfeed Boiler Drying Centrifugal Blower Fan can output high outgas pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.
2. In the case of common base, the installation is very simple and requires little support from a professional technician.
3. The centrifugal fan bearing housing is reserved for the installation position of the temperature and vibration sensors, and the fan operation monitoring device can be conveniently installed.
4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
5. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.
6. The tight fit between the components and the good sealing performance ensure that the output pressure is not reduced.
