Single Inlet Q235 High Temperature Centrifugal Fan Metallurgy Smelting Furnace

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Noise: Optional Drivetrain: V-Belt Driven
Mounting: Free Standing Category: Blower
Medium: Clean Air/Dusty Air Power Source: Three Phase AC Motor
High Light:

high temperature blower fan

,

high temperature fans and blowers

High Temperature Materials Cooling Energy Saving Heavy Duty Centrifugal Fan



Introduction



The 7-09 series high temperature medium pressure centrifugal blower fan has moderate pressure and large flow, belongs to the low noise series fan and has stable performance.

The centrifugal blower fan system adopts a detachable design, which greatly reduces the transportation cost of customers.

Each centrifugal blower fan part has an installation number and can be successfully assembled under the guidance of the installation manual.

Provide on-site installation guidance services.

Technical data



PRODUCT PARAMETERS
Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan Performance
Impeller diameter 500~1000 mm
Speed of mainshaft

1470~3070

rpm
Pressure range 2188~4109 Pa
Flow range 4486~36478 m3/h
Centrifugal Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. It can also be made into explosion-proof and flame-retardant type according to the requirements of use. It is suitable for occasions with flammable, explosive and corrosive gases.

2. After the production is completed, all products are tested for running and vibration values for reliable operation.

3. The airflow channel and the impeller have been optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

4. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

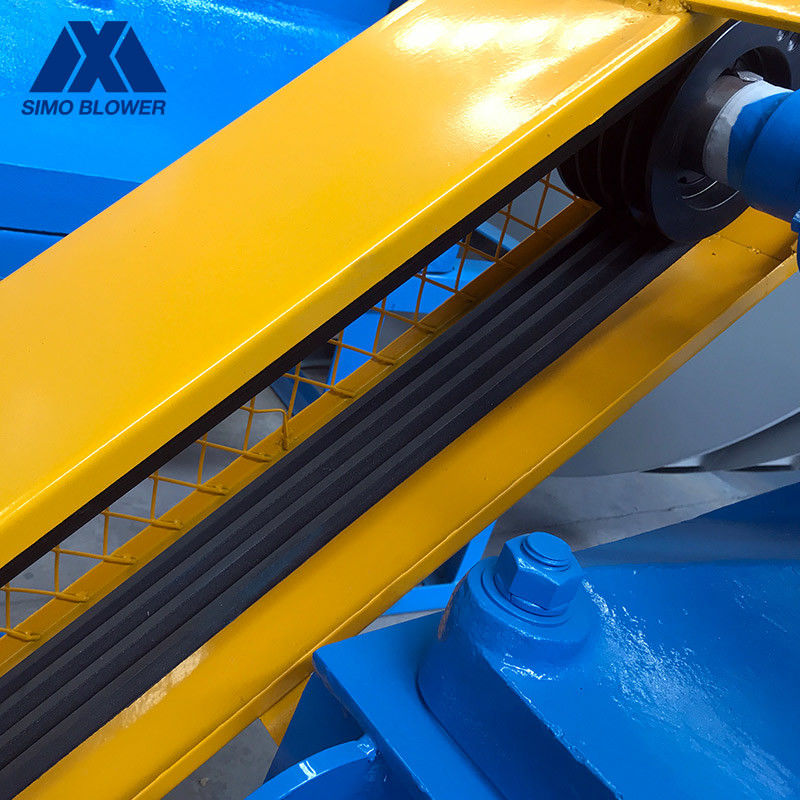

Single Inlet Q235 High Temperature Centrifugal Fan Metallurgy Smelting Furnace 0

Single Inlet Q235 High Temperature Centrifugal Fan Metallurgy Smelting Furnace 1
