| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 7-09 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Warranty: | 1 Year | Voltage: | 380V/415V/440V/660V/6KV/10KV |
| Current Type: | AC | Impeller: | Dynamic Balanced |
| High Light: | high volume blower fan,three phase blower |
||

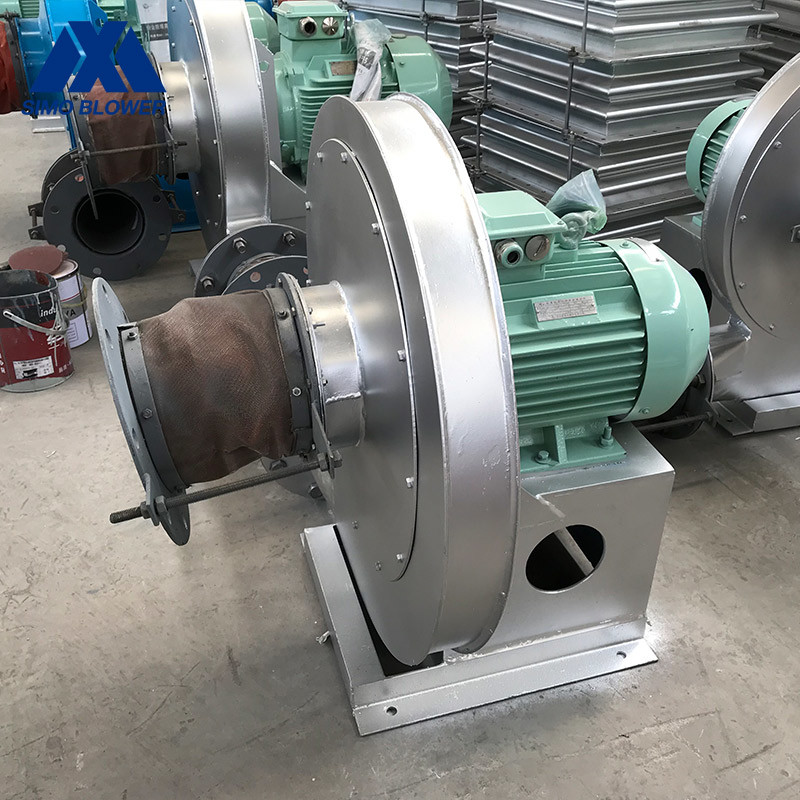

Stainless Steel Efficient Energy-Saving Material Handling Centrifugal Fan
Introduction
The Stainless Steel Efficient Energy-Saving Material Handling Centrifugal Fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
Stainless Steel Efficient Energy-Saving Material Handling Centrifugal Fan belongs to small flow and medium pressure series.
Stainless Steel Efficient Energy-Saving Material Handling Centrifugal Fan has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
Technical data
| series | model |
Centrifugal Fan Rotation Speed |
Centrifugal Fan Total Pressure |
Centrifugal Fan Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
7-09 Centrifugal Fan |
5.6A | 1420 | 1462～1263 | 2953～5907 | 3 |
| 6A | 1440 | 1728～1492 | 3684～7368 | 5.5 | |
| 7.1A | 1460 | 2493～2153 | 6189～12378 | 11 |
Advantages and Features
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
