| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-06 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Warranty: | 1 Year | Impeller Test: | Ultrasonic Flaw Detection |
| Impeller: | Dynamic Balanced | Motor: | SIEMENS/ABB/By Your Demand |
| High Light: | material handling fan,three phase blower |
||

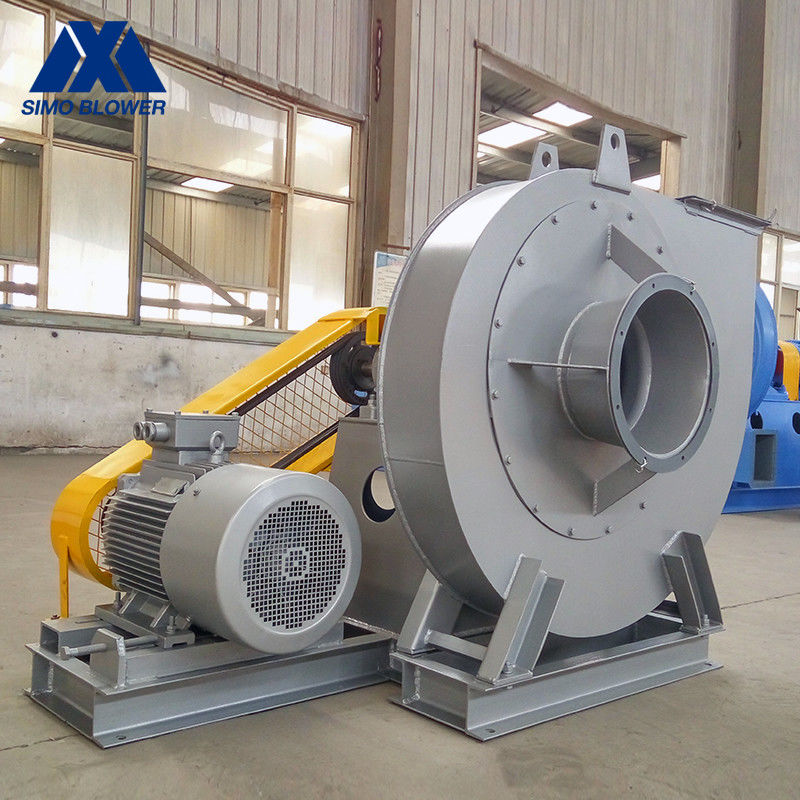

Antifraying Drying Ventilate Material Handling Centrifugal Blower Fan
Introduction
Antifraying Drying Ventilate Material Handling Centrifugal Blower Fan is generally used for gas transportation of granular or powdery materials, and can be widely used to transport air and non-corrosive non-self-igniting, non-viscous substances.
The temperature of the medium generally does not exceed 50°C (max 80°C), the dust and hard particles contained in the medium is not more than 150 mg / m3.
According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
Technical data
| series | model |
Centrifugal Blower Rotation Speed |
Centrifugal Blower Total Pressure |
Centrifugal Blower Air Capacity |
Power (kW) |
|---|---|---|---|---|---|
|
6-06 Centrifugal Blower |
8C | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9C | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 | |
| 10C | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 | |
| 11C | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 | |
| 12C | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 | |
| 13C | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 | |
| 14C | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 | |
| 15C | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 | |
| 16C | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 | |
| 17C | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 | |
| 18C | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 | |
| 19C | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 | |
| 20C | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 | |
| 21C | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 | |
| 22C | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 | |
| 23.5C | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 | |
| 25C | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 | |
| 26.5C | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 | |
| 28C | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 | |
| 29.5C | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
Advantages and Features
1.Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
2. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
3. Test assembly after production is completed to ensure that there is no interference between the components.
4.Provide on-site arrangement and guidance services.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
