Backward Stainless Steel Material Handling Fan For Kilns Cooling

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-04
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Bearing: SKF/FAG/By Your Demand Delivery Time: 30 Days
Bearing Cooling: Air Cooling Or Circulating Water Cooling Blade: Forward / Backward/Backward Curved
High Light:

high volume blower fan

,

three phase blower

Backward Stainless Steel Antifraying Kilns Cooling Material Handling Blower



Introduction



Backward Stainless Steel Antifraying Kilns Cooling Material Handling Blower fans have high pressure coefficient, low peripheral speed, low noise, flat performance curve and wide area of high efficiency.

They are used in forging furnaces and high pressure forced ventilation and are widely used to transport materials and air. The maximum temperature should not exceed 250 degrees Celsius.

Suitable for flow and dust removal ventilation systems in high pressure heads.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



series model

Material Handling Blower

Rotation Speed
(r/min)

Material Handling Blower

Total Pressure
(Pa)

Material Handling Blower

Air Capacity
(m³/h)

Power
(kW)

6-04

Material Handling Blower

12D 1450 35815356 1480035200 5575
12.5D 1450 38855808 1680039800 5575
13D 1450 42086288 1890044800 7590
13.5D 1450 45326779 2110050200 90110
14D 1450 48747289 2360055900 110132
14.5D 1450 52297819 2620062200 132160
15D 1450 56008365 2900068800 132220
15.5D 1450 59728934 3200075900 160220
16D 1450 63659573 3520083500 220280
16.5D 1450 677710121 3860091600 250315
17D 1450 718910739 42200100000 280355
17.5D 1450 762011386 46000108000 315400
18D 1450 806112043 50100119000 355500
18.5D 1450 851212720 54400129000 450560
19D 1450 898313416 58900140000 500630
19.5D 1450 946414132 63600151000 560710
20D 1450 1030714867 68700163000 630800


Advantages and Features



1. It can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.

2. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.

3. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance. For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.

4. The material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature &high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft at high temperature still maintain reliable strength.

5. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.

6. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

7. After running test and vibration value detection, the operation is reliable.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

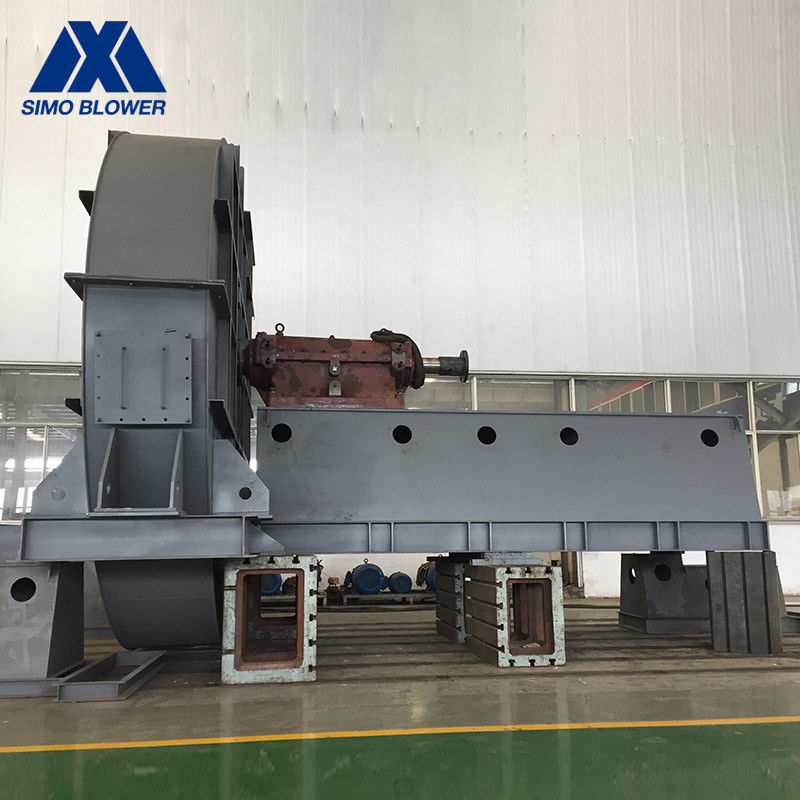

Backward Stainless Steel Material Handling Fan For Kilns Cooling 0

Backward Stainless Steel Material Handling Fan For Kilns Cooling 1
