Nickel Iron Rotary Kiln Stainless Steel Blower Forced Draught Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-05
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Mounting: Free Standing Noise: Optional
Delivery Time: 30 Days Type: Centrifugal Fan
Impeller: Dynamic Balanced Color: Customer's Requirement
High Light:

impeller centrifugal fan

,

air duct exhaust fan

Nickel Iron Rotary Kiln Forced Draught Stainless Steel Air Blower



Introduction



Nickel Iron Rotary Kiln Forced Draught Stainless Steel Air Blower is suitable for high-pressure conveying of clean air at normal temperature and light granules/powder/crush/staple material, mostly used for air trough, forced ventilation, fast drying, forced Cooling and cooling, pressurization or decompression sealing of industrial equipment.

However, it is only used for conveying air and non-corrosive, non-self-igniting, non-explosive, non-viscous substances, and the temperature isn’t more than 80°C, the dust and hard particles contained in the medium is not more than 150mg/m3.



Technical data



PRODUCT PARAMETERS
centrifugal fan
Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder 25

centrifugal fan

Performance

Impeller diameter 250~650

mm

Speed of mainshaft 1440~2825 rpm
Pressure range 907~1711 Pa
Flow range

599~11053

m3/h
centrifugal fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Direct Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
centrifugal fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
centrifugal fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.



Advantages and Features



1.Small size, compact shape, can be placed in a small space.

2.Simple installation, do not need the support of professional technician.

3. High energy transfer efficiency. All the energy of the motor ACTS directly on the impeller, and there is no energy consumption in the transmission process.

4. Low starting current, no motor soft starting device is needed for the power below 7.5kw.

5.Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

6. Running test and vibration value test after the production is completed, the operation is reliable.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

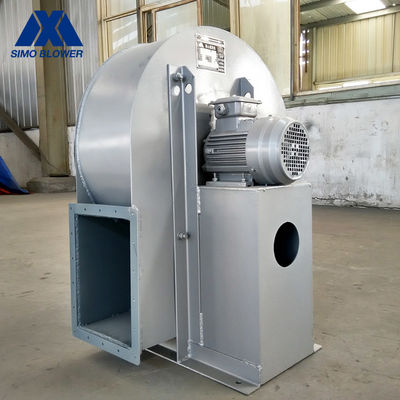

Nickel Iron Rotary Kiln Stainless Steel Blower Forced Draught Fan 0

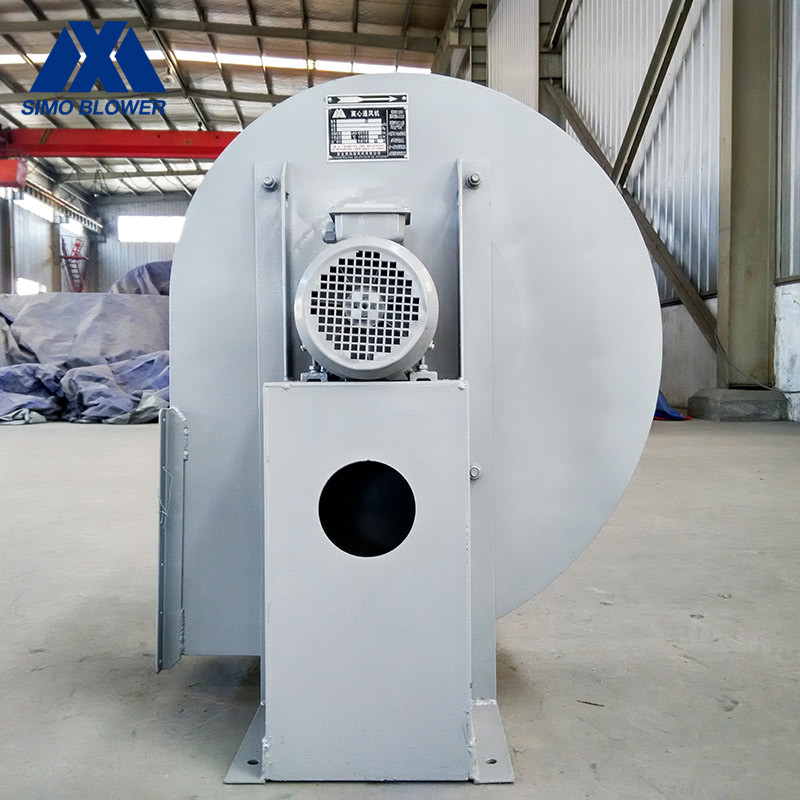

Nickel Iron Rotary Kiln Stainless Steel Blower Forced Draught Fan 1
