Stainless Steel Blower
>

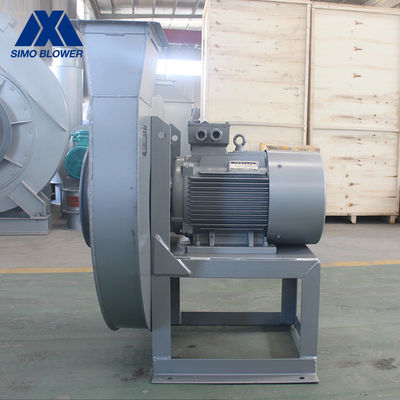

Oven Wall Cooling Stainless Steel BlowerSingle Inlet Centrifugal Fan

Oven Wall Cooling Stainless Steel BlowerSingle Inlet Centrifugal Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-08
Warranty:
1 Year
After-sales Service Provided:
Field Installation, Commissioning And Training
Noise:
Optional
Color:
Customer's Requirement
Motor Type:
Three Phase AC Motor
Impeller Support:
SWSI (Single Width, Single Inlet), Impeller Overhung
Highlight:

High Light

Highlight:

stainless steel centrifugal blower

,

air duct exhaust fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Oven Wall Cooling Efficient Energy-Saving Stainless Steel Blower



Introduction



Oven Wall Cooling Efficient Energy-Saving Stainless Steel Blower is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.

The temperature of the medium is generally not more than 80°C, and the dust and hard fine particles contained in the medium are not more than 150mg/m3.

The fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



series model

Stainless Steel Blower

Rotation Speed
(r/min)

Stainless Steel Blower

Total Pressure
(Pa)

Stainless Steel Blower

Air Capacity
(m³/h)

Power
(kW)

9-08

Stainless Steel Blower

4A 2900 38523407 21983215 5.5
4.5A 2900 42564910 31304792 7.511
5A 2900 51806035 42936762 1518.5
5.6A 2900 35277610 60329500 2230
6.3A 2900 83109698 858813525 4555



Advantages and Features



1. Oven Wall Cooling Efficient Energy-Saving Stainless Steel Blower can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.

3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. Customized design according to customer performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

6. The parts are closely matched and have good sealing performance to ensure the output pressure will not be reduced.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
