Q235 Centrifugal Flow Fan High Temperature Centrifugal Fan For Harmful Air Emissions

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Impeller: Dynamic Balanced
Material: Carbon Steel/Alloy Steel/Stainless Steel After-sales Service Provided: Field Installation, Commissioning And Training
Bearing Type: Bearing Type Bearing Cooling: Air Cooling Or Circulating Water Cooling
High Light:

industrial centrifugal blower

,

large centrifugal fan

,

Q235 High Temperature Centrifugal Flow Fan

Large Capacity Harmful Air Emissions Q235 Centrifugal Flow Blower Fan



Introduction



The 7-09 series medium pressure centrifugal flow fan has moderate pressure and large flow, belongs to the low noise series fan and has stable performance.

It’s suitable for conveying normal temperature or high temperature non-flammable gas (normal air, high temperature gas, corrosive gas, dusty gas), and conveying granule/powder/chip/fiber material.

It’s a widely used medium-pressure heavy-duty centrifugal fan, which is commonly used in industrial systems such as boilers, dust collectors, desulfurization systems, cement, chemicals, metallurgy, electric power, and gas and material transportation. It can also be used for general ventilation.



Technical data



PRODUCT PARAMETERS
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Flow Blower Fan Performance
Impeller diameter

1500-3500

mm
Speed of mainshaft

≤1450

rpm
Pressure range

4217-15694

Pa
Flow range

4293-773605

m3/h
Centrifugal Flow Blower Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain

Coupling

Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Flow Blower Fan
System Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Flow Blower Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. Centrifugal Flow Blower Fan can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.

2. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

3. The airflow channel and the impeller have been optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft can still maintain a reliable strength at high temperature.

5. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

6. The Centrifugal Flow Blower Fan impeller is subjected to high standard dynamic balance correction to ensure stable operation of the fan.

7. The Centrifugal Flow Blower Fan system adopts a detachable design, which greatly reduces the transportation cost of customers.

8. Each part has an installation number and can be successfully assembled under the guidance of the installation manual.

9. Provide on-site installation guidance services.

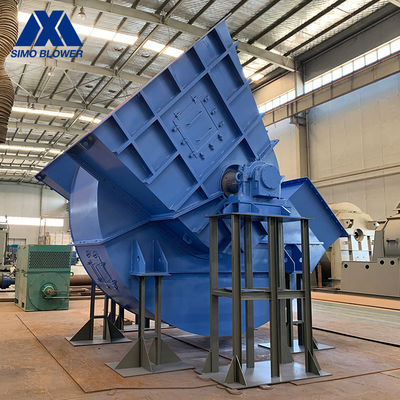

Q235 Centrifugal Flow Fan High Temperature Centrifugal Fan For Harmful Air Emissions 0Q235 Centrifugal Flow Fan High Temperature Centrifugal Fan For Harmful Air Emissions 1
