| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Mounting: | Free Standing |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | Motor Type: | Three Phase AC Motor |
| Blade: | Forward/Backward/Backward Curved | Medium: | Clean Air/Dusty Air |
| High Light: | dust control fan,single inlet centrifugal blower,Materials Drying Stainless Steel Blower |
||

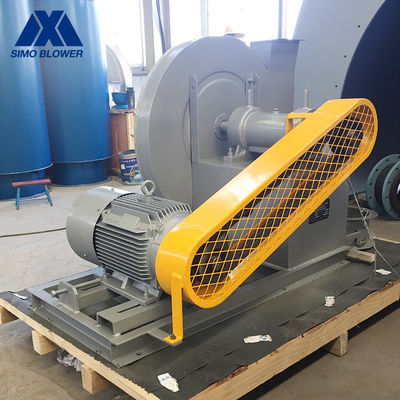

Coupling Driven Explosion Proofing Materials Drying Dust Collector Blower Fan
Introduction
The Coupling Driven Explosion Proofing Materials Drying Dust Collector Blower Fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.
The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.
The Coupling Driven Explosion Proofing Materials Drying Dust Collector Blower Fan is a series of fans that are used in a large number of industrial fields.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
|
9-10 Dust Collector Blower Fan |
8C | 1450～2900 | 3231～15034 | 3297～14287 | 7.5～110 |
| 9C | 1450 | 4101～4597 | 4695～10717 | 15～22 | |
| 10C | 1450 | 4958～5840 | 6440～15455 | 30～37 | |
| 11.2C | 960～1450 | 2705～7364 | 5990～21713 | 15～75 | |
| 12.5C | 960～1450 | 3975～9229 | 8327～30186 | 22～110 | |
| 14C | 960～1450 | 4249～11668 | 11699～42409 | 37～220 | |
| 16C | 960～1450 | 5575～15425 | 17463～63305 | 75～315 |
Application
Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
