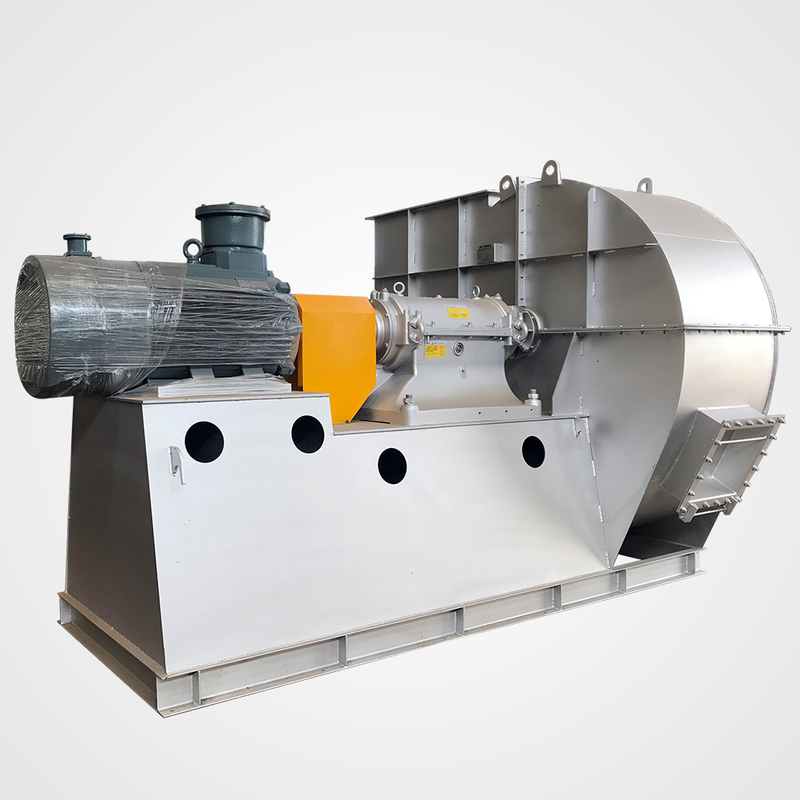

Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower

Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower
Brand Name
SIMO
Product Model
SIMO Blower 4-10
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
L/C, D/P, T/T
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

high temperature industrial boiler fan

,

anti abrasive induced draft blower

,

industrial induced draught fan
Keywords: 4-73 Centrifugal FAN
Feature: High Efficiency
Drivetrain: Direct/Coupling Driven/V-belt Driven
Noise: Optional
Bearing Type: Rolling Bearing
Motor Brand: Chinese Famous Brand, ABB, Siemens, Weg Etc
Cooling Method: Air Cooling, Water Cooling, Oil Cooling
After-Sales Service Provided: Field Installation, Commissioning And Training
Warranty: 1 Year
Product Description
Detailed Specifications And Features
1000t/D Glass Melting Furnace Flue Gas Treatment Supporting Induced Draft Fan

With 70 years of manufacturing expertise, we specialize in producing anti-abrasive, high-temperature induced draught fans/blowers for industrial boilers. Designed to handle extreme operating conditions, our fans feature superior wear resistance, high-temperature durability, and optimized efficiency. Built with advanced materials and precision engineering, they ensure stable performance, energy savings, and extended service life, even under the toughest environments. Perfect for applications in power plants, chemical industries, and heavy-duty boiler systems, our fans are trusted worldwide for reliability and quality. Choose our solutions for unmatched performance and long-term efficiency.

Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower 0

Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.

Product Features
Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower 1
Technical Specifications

The following datas are only part of performance of our product.

If you can't find the datas you need, pls send us your performance requirements we will provide you customized design service.

Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower 2
Series no. 4-10 series Feature selection
Performance Impeller diameter 800-2950mm
Rotation speed 580-1450r/min
Pressure range 553-7218Pa
Flow range 15229-810000m³/h
Structure Blade type Backward, Straight, Aerofoil type
Impeller support SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
Lubrication method Oil bath lubrication, grease lubrication, lubrication oil station Can be specified
Cooling method Air cooling, Water cooling, Oil cooling Can be specified
Driven mode Direct driven, Coupling driven, Belt driven Can be specified
Gas composition Gas temperature Normal Customer request
gas characteristic Clean gas Corrosive gas
System configuration Motor brand Chinese famous brand, ABB, Siemens, WEG etc Can be specified
Option parts System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
Production Process

We are strict with every step about the industrial centrifugal fan and axial fan.

Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower 3
Cases
Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower 4
Packaging & Shipping

Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower 5

FAQ
1. How many years your company has experience in centrifugal fan machines?

Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.

2. How about your company's pre-sales service and after-sales service?

Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.

Anti Abrasive High Temperature Industrial Boiler Induced Draught Fan/Blower 6
