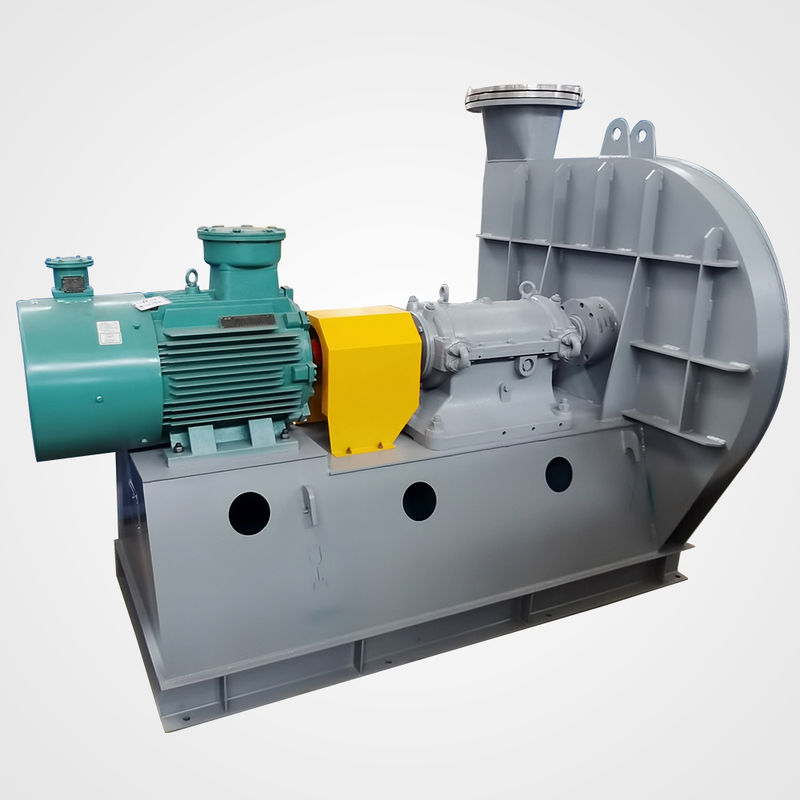

75kw Variable Frequency Explosion-Proof Motor High Pressure Centrifugal Fan Blower
75kw Variable Frequency Explosion-Proof Motor High Pressure Centrifugal Fan Blower
Brand Name
SIMO BLOWER
Product Model
SIMO Blower 9-12
Certificate
CE, ISO
Country Of Origin
China
MOQ
≥1 set
Unit Price
$500-1,0000.00/set
Payment Method
T/T, L/C, D/P
Supply Capacity
300 Set/Sets per Month centrifugal fan and axial fan manufacturer
Product Details
Highlight:
High Pressure Centrifugal Fan Blower
,75kw Explosion Proof Blower
,Variable Frequency Explosion Proof Blower
Application:
Industrial Waste Gas Treatment
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Blade Type:
Forward
Motor:
SIEMENS/ABB/By Your Demand
Impeller:
Dynamic Balanced
Air Flow:
90-61297㎥/h
Pressure Range:
1581-10587Pa
Rotation SpeedMedium:
≤4000rpm
Feature:
High Performance Strong Suction
Impeller Support:
SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung Type
Transport Package:
Standard Export Wooden Case
Production Capacity:
10, 000 Sets/Year
After-Sales Service Provided:
Field Maintenance And Repair Service
Customized Support:
ODM OEM OBM
Warranty:
1 Year
Key Words:
Centrifugal Fan Manufacturer, Custom Industrial Centrifugal Fan, Centrifugal Blower
Product Description
Detailed Specifications And Features
75kw variable frequency explosion-proof motor high pressure centrifugal fan blower
9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.
The fan can also be used as the blast for various furnace forging furnaces.
It is also suitable for conveying air and non-corrosive, non-self-igniting, non-viscous materials or light powder/debris/short fiber materials.
It is suitable for forced ventilation, forced cooling, blasting of smelting furnaces and foundry furnaces, pressurization or decompression sealing of industrial equipment.
Product features
1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6.After the completion of production, after running test and vibration value detection, the operation is reliable.
2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6.After the completion of production, after running test and vibration value detection, the operation is reliable.
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
| 9-12 | 4D | 2900 | 2285~2452 | 3297~6594 | 5.5~7.5 |
| 4.5D | 2900 | 2893~3060 | 4695~9389 | 11~15 | |
| 5D | 2900 | 3570~3854 | 6440~12880 | 15~22 | |
| 5.6D | 2900 | 4482~4805 | 9048~18095 | 30~45 | |
| 6.3D | 1450 | 1422~1500 | 6441~12882 | 7.5~11 | |
| 7.1D | 1450 | 1804~1942 | 9220~18439 | 11~18.5 | |
| 8D | 1450 | 2285~2462 | 13189~26378 | 18.5~30 | |
| 9D | 1450 | 2893~3099 | 18779~37558 | 37~55 | |
| 10D | 1450 | 3570~3854 | 25760~42933 | 55~90 | |
| 11.2D | 960~1450 | 1961~4835 | 23961~72381 | 30~160 | |
| 12.5D | 730~960 | 1412~2638 | 25329~66620 | 22~90 | |
| 14D | 730~960 | 1775~3305 | 35586~93596 | 45~160 | |
| 16D | 730~960 | 2314~4295 | 53120~139712 | 75~280 |
Pursue excellent quality, make perfect product!
