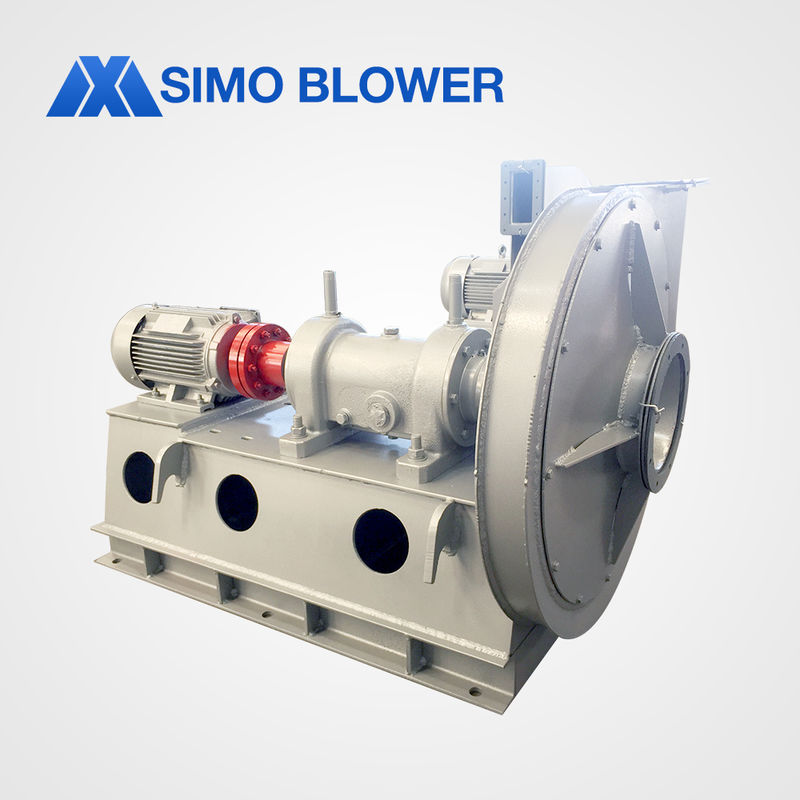

Customized Soda Ash Project Industrial High Pressure Fan Lime Blower

Name: Customized Soda Ash Project Industrial High Pressure Fan Lime Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 9-12
Availability: InStock

Brand Name

SIMO BLOWER

Product Model

SIMO Blower 9-12

Certificate

CE, ISO

Country Of Origin

China

MOQ

≥1 set

Unit Price

$500-1,0000.00/set

Payment Method

T/T, L/C, D/P

Supply Capacity

300 Set/Sets per Month centrifugal fan and axial fan manufacturer

Product Details

Highlight:

High Pressure Fan Lime Blower

Soda Ash Project Blower

Customized centrifugal Fan Blower

Application: Industrial Waste Gas Treatment

Bearing Cooling: Air Cooling Or Circulating Water Cooling

Blade Type: Forward

Motor: SIEMENS/ABB/By Your Demand

Impeller: Dynamic Balanced

Air Flow: 90-61297㎥/h

Pressure Range: 1581-10587Pa

Rotation SpeedMedium: ≤4000rpm

Feature: High Performance Strong Suction

Impeller Support: SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung Type

Transport Package: Standard Export Wooden Case

Production Capacity: 10, 000 Sets/Year

After-Sales Service Provided: Field Maintenance And Repair Service

Customized Support: ODM OEM OBM

Warranty: 1 Year

Key Words: Blower,Blower Fan,Industrial Fan,High Pressure Blower

Product Description

Detailed Specifications And Features

Customized soda ash project high pressure industrial high pressure fan lime blower

We offer customized high-pressure industrial fans designed specifically for soda ash projects. These fans provide powerful airflow and pressure, making them ideal for lime blowing systems, ensuring efficient material transport and processing. Our products are made from durable materials to withstand harsh industrial environments, guaranteeing long-term stable operation.

Product features

1. It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
2. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
3. The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
4. It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
5. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
6.After the completion of production, after running test and vibration value detection, the operation is reliable.

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

series	model	Rotation Speed (r/min)	Total Pressure (Pa)	Air Capacity (m³/h)	Power (kW)
9-12	4D	2900	2285~2452	3297~6594	5.5~7.5
	4.5D	2900	2893~3060	4695~9389	11~15
	5D	2900	3570~3854	6440~12880	15~22
	5.6D	2900	4482~4805	9048~18095	30~45
	6.3D	1450	1422~1500	6441~12882	7.5~11
	7.1D	1450	1804~1942	9220~18439	11~18.5
	8D	1450	2285~2462	13189~26378	18.5~30
	9D	1450	2893~3099	18779~37558	37~55
	10D	1450	3570~3854	25760~42933	55~90
	11.2D	960~1450	1961~4835	23961~72381	30~160
	12.5D	730~960	1412~2638	25329~66620	22~90
	14D	730~960	1775~3305	35586~93596	45~160
	16D	730~960	2314~4295	53120~139712	75~280
