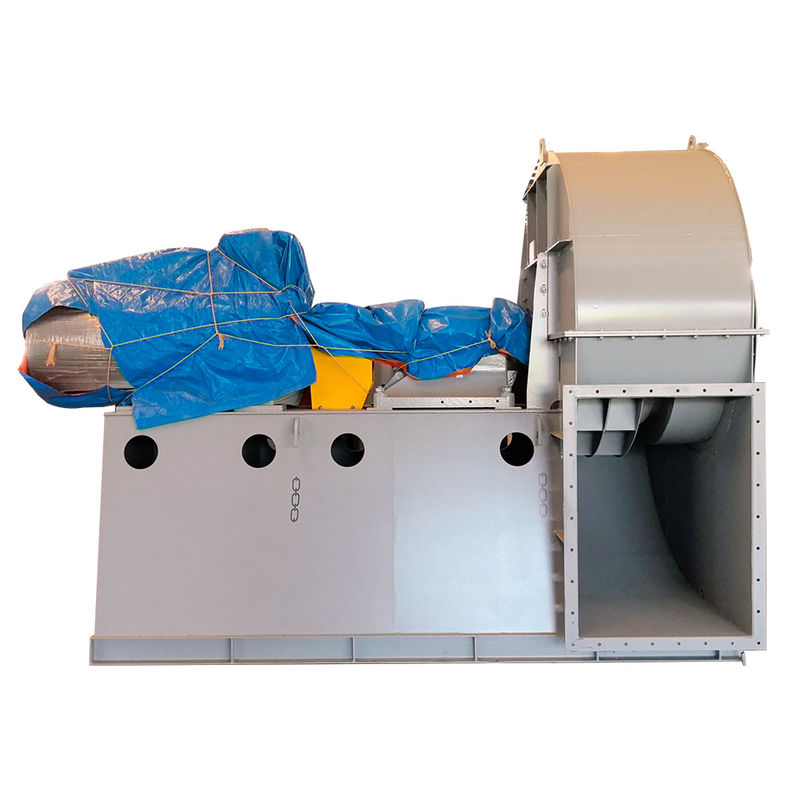

High Flow High Efficiency High Quality Carbon Steel Steam Boiler Ventilation Fan
High efficiency steam boiler ventilation fan
,High quality steam boiler ventilation fan
,High flow steam boiler ventilation fan
High flow high efficiency high-quality carbon steel steam boiler ventilation fan
Pursue excellent quality, make perfect product!
Applications
♦ Boiler’s air supply and exhaust (Coal-fired boiler, Biomass boiler, Garbage incinerator, CFB boiler, Stokerfeed boiler…).
♦ Industrial boiler blowing air, Industrial boiler inducing air, Industrial boiler primary air, Industrial boiler secondary air.
♦ Industrial boiler waste gas desulfurization, Industrial boiler flue gas denitrification.
| Application | Temperature | Normal temperature Air | |
| Hot Air | |||
| Air composition | Clean air | ||
| Dusty air | |||
| Corrosive gas | |||
| Combustible gas | |||
| Powder materials | |||
| Light particle materials | |||
| Performance | Impeller diameter | 800~1800 | mm |
| Speed of mainshaft | 580~1450 | rpm | |
| Pressure range | 553~6541 | Pa | |
| Flow range | 15229~233730 | m3/h | |
| Structure | Blade | Backward | |
| Impeller Support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | Coupling drivetrain | Can assign | |
| Lubrication | Oil bath lubrication | Can assign | |
| Bearing cooling | Air cooling or Circulating Water cooling | ||
| System configuration |
Motor | SIEMENS, ABB, SIMO, LA… | Can assign |
| Impeller | Carbon steel | ||
| Impeller cone (Air Inlet) | Carbon steel | ||
| Case | Carbon steel | ||
| Air damper | Carbon steel | ||
| Main shaft | High-strength carbon structural steel | ||
| Bearing | FAG, SKF, ZWZ, C&U… | ||
| Bearing housing | Cast iron | ||
| Drivetrain | Coupling | Can assign | |
| Foundation bolt | |||
| Optional components |
System base frame, Protective screening, |
||
-
