Centrifugal Ventilation Fans
>
Stable Performance Centrifugal Ventilation Fans For High Temperature Environments

Stable Performance Centrifugal Ventilation Fans For High Temperature Environments

Product Details:
Place of Origin: China SIMO Blower
Brand Name: simo blower
Certification: CE/ISO9001/ISO45001
Model Number: 4-10
Detail Information
Place of Origin:
China SIMO Blower
Brand Name:
simo blower
Certification:
CE/ISO9001/ISO45001
Model Number:
4-10
Category:
Blower
Current Type:
AC
Customized Support:
OEM, ODM, OBM
Drive:
Direct Driven, Coupling Driven, Belt Driven
Keywords:
4-73 FAN
Main Shaft:
High-strength Carbon Structural Steel
Usage:
Blowing Air
Voltage:
380V
Motor Brand:
Chinese Famous Brand, ABB, Siemens, WEG Etc
Main Shaft:
High Strength Carbon Steel, Alloy Structural Steel
Bearing:
ZWZ, SKF, FAG, NSK
High Light:

High Light

High Light:

Stable Performance Centrifugal Ventilation Fans

,

High Temperature Centrifugal Ventilation Fans

,

High Temperature Ventilation Fans

Trading Information
Minimum Order Quantity:
1
Price:
$500-1,0000.00/set
Packaging Details:
1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement
Delivery Time:
35days (To be negotiated)
Payment Terms:
L/C, T/T
Supply Ability:
300sets/30days
Product Description

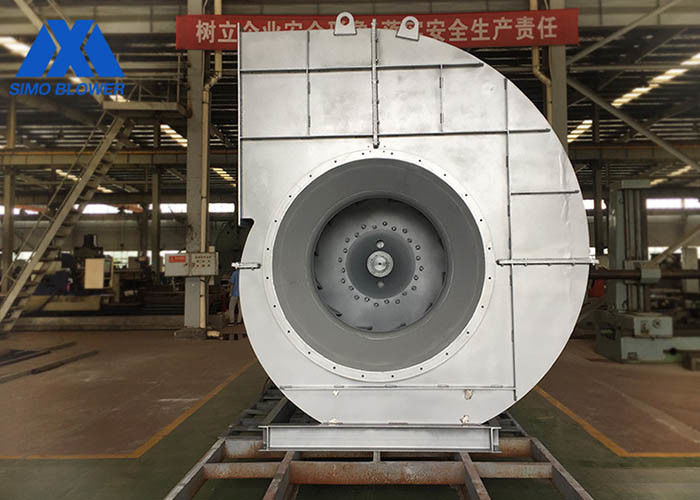

4-10 series large flow centrifugal ventilation fan



Detail introduction:

G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.

They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.

Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.

Stable Performance Centrifugal Ventilation Fans For High Temperature Environments 0

Product features:

1. It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.

2. The fan blade placement angle is optimized, more wear-resistant and longer service life.

3. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.

5. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.

6. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

7. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

8. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

9. There are a variety of accessories to choose from.



Technical specifications:



Stable Performance Centrifugal Ventilation Fans For High Temperature Environments 1





Stable Performance Centrifugal Ventilation Fans For High Temperature Environments 2



Packing and shipping:



Stable Performance Centrifugal Ventilation Fans For High Temperature Environments 3



FAQ and Contact us

1. How many years your company has experience in centrifugal fan machines?

Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 60 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.

2. How about your company’s pre-sales service and after-sales service?
Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
