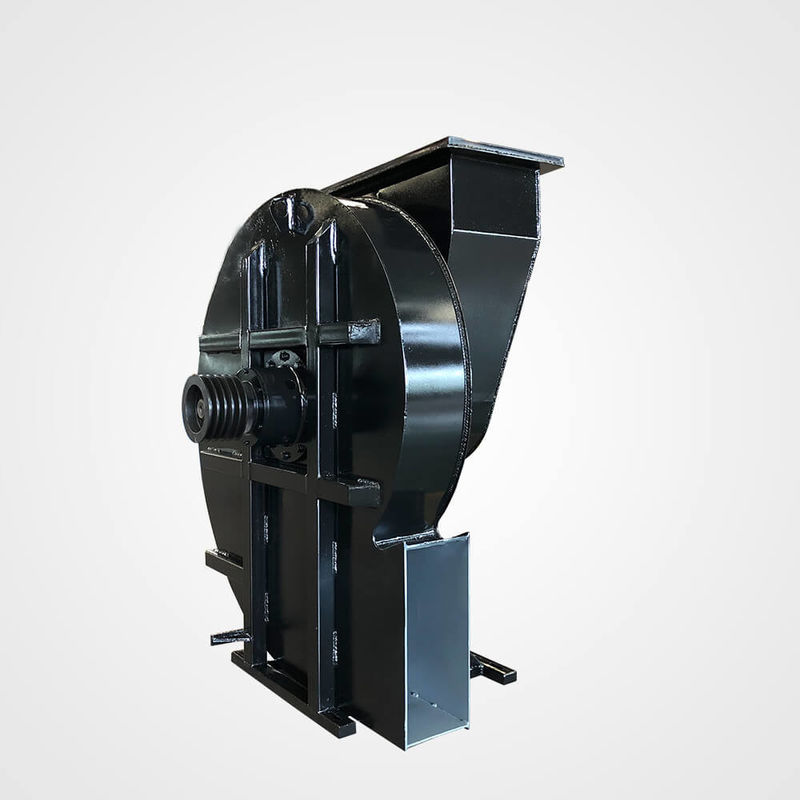

Street Sweeper Centrifugal Blower Fan 9-10 Blade

Street Sweeper Fan Centrifugal Blower China Centrifugal Can Suppliers

Introduction

The 9-10 series centrifugal fan can output high gas pressure, suitable for conveying normal or high temperature clean gas/combustible gas/corrosive gas/mixed with a few impurities, light particles/debris/short fiber materials.

The most commonly used for forced ventilation, rapid drying, rapid cooling and heat dissipation, cement production line chiller cooling, clinker cooler, circulating fluidized bed system, air purification and industrial waste gas treatment, flue gas desulfurization industrial boilers or incinerators forced draft/ induced draft/ primary/ secondary air, ventilation of large mill system, industrial waste heat recovery device, blasting of smelting furnace and casting furnace, combustion of blast furnace, coal injection of blast furnace, pressurized transportation of gas, Pressurization or decompression sealing of industrial equipment.

The 9-08/9-10 series fan is a series of fans that are used in a large number of industrial fields.

Technical Parameters

Advantages and Features

1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.

2. The fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.

5. Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.

6. The bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.

7. The impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

8. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

9. After the production is completed, all products are tested for running and vibration values for reliable operation.

FAQ

1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
