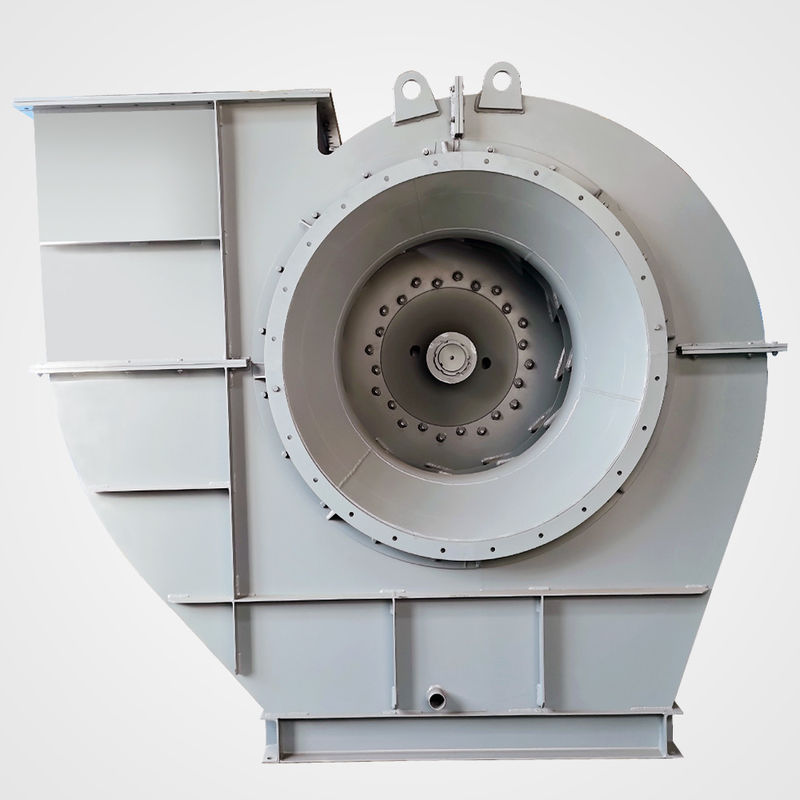

380v/50hz Induced Draught Fan Industrial Ventilation Blower For Cement Kiln

Product Description:

Induced draft fans are an important type of ventilation fan that uses an impeller to draw air into a space or object in order to improve ventilation and air quality. They are commonly used in industrial and commercial applications such as cement kilns, boilers, tunnels, factories, and engineering construction. The induced draft fan is made of SS304, SS316 and carbon steel materials, and has air volume ranging from 3000-20000m3/h. It is powered by an AC motor with power ranging from 5.5-1500kW. With its strong performance, it can effectively improve the ventilation status of the space or object, creating a more comfortable and safe environment. Induced draft fans are reliable, efficient and cost-effective, making them an ideal choice for ventilation solutions.

Features:

• Product Name: Induced Draft Fan
• Certification: CE,ISO
• Power: 5.5-1500kW
• Ambient Temperature: 20℃-500℃
• Voltage: 380V/50Hz
• Insulation Class: F
• Type: Radial fans, axial fans



Technical Parameters:

Parameter	Value
Type	Induced Draft Fan
Pressure	2000-10000Pa
Air Volume	3000-20000m3/h
Insulation Class	F
Voltage	380V/50Hz
Ambient Temperature	20℃-500℃
Blade Number	4-73, 5-48, 6-51, 9-19
Blade Type	Backward Curved
Speed	1450-2900rpm
Motor	AC Motor



Applications:

SIMO BLOWER's Y series Induced Draft Fan is designed with brand name, model number, place of origin, certification, efficiency, blade number, application, and impeller testing main features. The brand name is SIMO BLOWER, the model number is Y, the place of origin is CHANA, and the certifications are CE and ISO. The efficiency is greater than or equal to 85%, and the blade numbers are 4-73, 5-48, 6-51, and 9-19. The application of the fan is for cement kilns, boilers, tunnels, factories, and engineering construction. The impeller testing is dynamic blancing adjusting. This Induced Draft Fan is a great choice for boiler id fan, induced draft fans, ID Fan Blower, and cement kiln.



Customization:

Welcome to SIMO BLOWER's Induced Draft Fan customization service! Our ID FANS feature the following:

• Brand Name: SIMO BLOWER
• Model Number: Y
• Place of Origin: CHANA
• Voltage: 380V/50Hz
• Blade Number: 4-73,5-48,6-51,9-19
• Material: SS304,SS316,Carbon Steel
• Noise: ≤85dB(A)
• Ambient Temperature: 20℃-500℃

Our Industrial radial fan is a great option for you. We have many years of experience in producing ID / FD Fan. We guarantee good quality and competitive prices. Contact us now to customize your Induced Draft Fan!



Support and Services:

We offer technical support and service for Induced Draft Fan products. Our experienced team of engineers and technicians are available to provide advice and assistance on product selection, installation, operation and maintenance. We also provide training courses to ensure that you have the necessary skills to properly operate and maintain your Induced Draft Fan.

Our service team is available to respond to any technical or operational queries you may have. We provide a range of services including troubleshooting, repairs, and spare parts supply. We also offer a range of optional extended warranties and service plans to ensure that your Induced Draft Fan remains in peak condition.

If you require any further information or assistance please do not hesitate to contact us.



FAQ:

• Q:What is the Brand Name of this product?
  A:The brand name of this product is SIMO BLOWER.
• Q:What is the Model Number of this product?
  A:The model number of this product is Y.
• Q:Where is this product from?
  A:This product is from China.
• Q:What features does this Induced Draft Fan have?
  A:This Induced Draft Fan has features such as low vibration, low noise, high efficiency, long service life and durable components.
• Q:What is the application range of this Induced Draft Fan?
  A:This Induced Draft Fan can be used in industrial and commercial applications, such as air conditioning systems, boilers, furnaces, and ventilation systems.
