| Place of Origin: | china |
|---|---|
| Brand Name: | SIMO |
| Certification: | ISO |
| Model Number: | 4-14 |
| Minimum Order Quantity: | 1 |
| Price: | 300 |
| Supply Ability: | 20 |

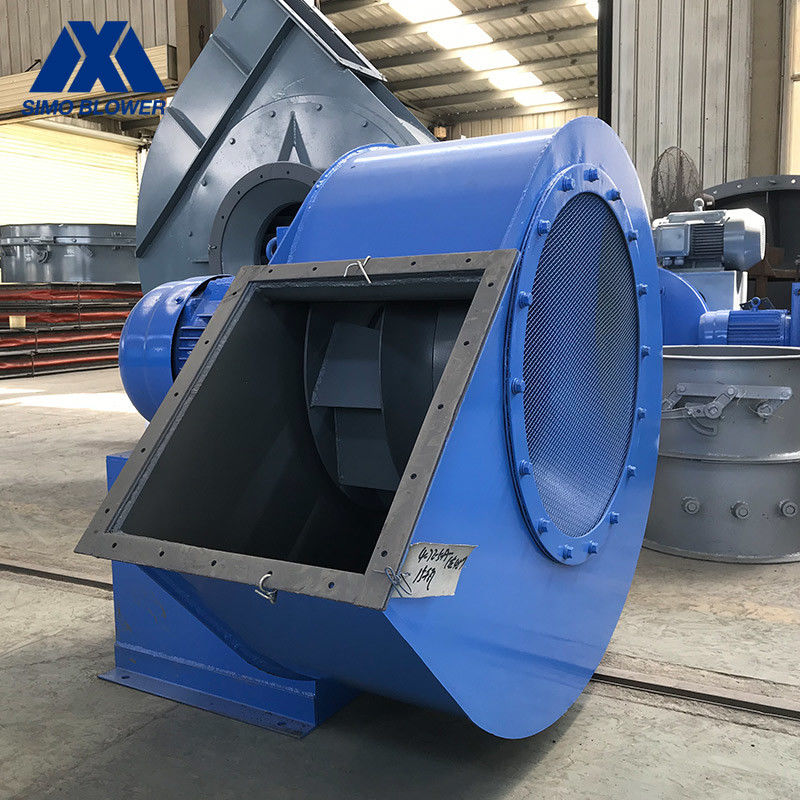

| High Light: | induced draft fan 15000 m3h,15000 M3h Centrifugal Blower Fan,Wear Resisting Induced Draft Fan |
||
|---|---|---|---|
Applications
♦ Ventilating
Forced ventilating, Building ventilating, Mine ventilating, Tunnel ventilating, Materials ventilating and drying.
♦ Industrial boiler blowing air, Industrial boiler inducing air, Industrial boiler waste gas dust collecting.
♦ Industrial boiler blowing air, Industrial boiler inducing air, Industrial boiler primary air, Industrial boiler secondary air.
♦ Brick kiln blowing air, Brick kiln inducing air.
Performance
| Application | Temperature | Normal temperature Air | |
| Hot Air | |||
| Air composition | Clean air | ||
| Dusty air | |||
| Corrosive gas | |||
| Combustible gas | |||
| Powder materials | |||
| Light particle materials | |||
| Performance | Impeller diameter | 600~1200 | mm |
| Speed of mainshaft | 730~1450 | rpm | |
| Pressure range | 317~3202 | Pa | |
| Flow range | 4420~24759 | m3/h | |
| Structure | Blade | Backward | |
| Impeller Support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | Coupling drivetrain | Can assign | |
| Lubrication | Oil bath lubrication | Can assign | |
| Bearing cooling | Air cooling or Circulating Water cooling | ||
| System | Motor | SIEMENS, ABB, SIMO, LA… | Can assign |
| configuration | Impeller | Carbon steel | |
| Impeller cone (Air Inlet) | Carbon steel | ||
| Case | Carbon steel | ||
| Air damper | Carbon steel | ||
| Main shaft | High-strength carbon structural steel | ||
| Bearing | FAG, SKF, ZWZ, C&U… | ||
| Bearing housing | Cast iron | ||
| Drivetrain | Coupling | Can assign | |
| Foundation bolt | |||
| Optional | System base frame, Protective screening, | ||
| components | Silencer, Inlet & Outlet pipeline compensator, | ||
| Inlet & Outlet flange, Damper, Electric actuator, | |||
| Shock isolator, Diaphragm coupling, Fluid coupling, | |||
| Motor rain cover, Temperature sensor, Vibrating sensor, | |||
| Soft starter, Inverter, Special Electrical Motor, | |||
| System monitoring Instrument, | |||
| Lube system, Overhead lube tank. | |||
