HG785 Alloyed Steel Heavy Duty Centrifugal Ventilation Fans Materials Drying

HG785 Alloyed Steel Heavy Duty Centrifugal Ventilation Fans Materials Drying

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-10
Feature:
High Performance
Drivetrain:
Direct/Coupling Driven/V-belt Driven
After-sales Service Provided:
Field Installation, Commissioning And Training
Power Source:
Three Phase AC Motor
Type:
Centrifugal Fan
Electric Current Type:
AC
High Light:

High Light

High Light:

HG785 Steel Centrifugal Ventilation Fans

,

HG785 Heavy Duty Centrifugal Ventilation Fans

,

Materials Drying Centrifugal Blower Fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

HG785 Alloyed Steel Heavy Duty Centrifugal Ventilation Fans Materials Drying



Introduction



The 4-10 series centrifugal Fan can be used for indoor ventilation in general factories and large buildings.

The casing is welded into a cochlear body by steel plates.The casing is welded into a cochlear body by steel plates.



Detail introduction


The transmission group is composed of a main shaft, a belt wheel and a water-cooled bearing box.

The housing is welded into a cochlear body with steel plate, and the housing can be made into a whole or two or three open structure. For the air guide, the cochlear plate is properly thickened to strengthen its wear resistance.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 21041400 1615630993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600



Product Features



For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.The main shaft of the transmission part is made of high-quality steel, and the 5-51 series of fans are all made of roller bearings.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

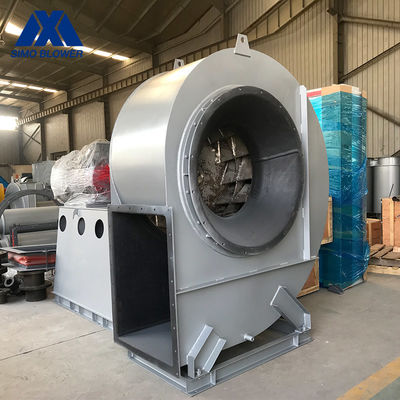

HG785 Alloyed Steel Heavy Duty Centrifugal Ventilation Fans Materials Drying 0

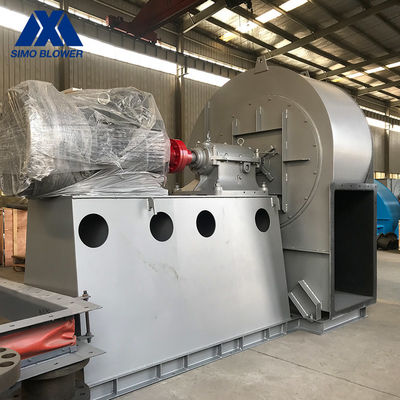

HG785 Alloyed Steel Heavy Duty Centrifugal Ventilation Fans Materials Drying 1
