Q345 Forward Explosion Proof Blower Ventilation Backward

Q345 Forward Explosion Proof Blower Ventilation Backward
Brand Name
SIMO
Product Model
SIMO Blower 6-06
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

Forward Explosion Proof Blower

,

Q345 Forward Explosion Proof Blower

,

Ventilation Backward Centrifugal Fan
Application: Industrial Ventilation
Color: Customer's Requirement
Electric Current Type: AC
Main Shaft: High-strength Carbon Structural Steel
Category: Blower
After-Sales Service Provided: Field Installation, Commissioning And Training
Product Description
Detailed Specifications And Features

Q345 Forward Explosion Proof Blower Ventilation Backward



Introduction



The 6-06 series boiler fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.

In the use of common base, the installation is very simple and requires little support from a professional technician.



Detail introduction



1. The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.

2. The parts are tightly matched and the sealing performance is good, ensuring that the output pressure will not decrease.

3. The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.



Technical data



series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
6-06 8D 1450 1859～2745 11000～26400 15 ~ 22
9D 1450 2353～3474 15700～37500 30 ~ 45
10D 1450 2905～4289 21500～51500 45 ~ 75
11D 960 ~ 1450 1541～5190 22700～68500 22 ~ 110
12D 960 ~ 1450 1834～6176 24600～89000 37 ~ 160
13D 960 ~ 1450 2152～7248 31200～113000 55 ~ 250
14D 960 ~ 1450 2496～8406 39000～141000 75 ~ 400
15D 730 ~ 1450 1657～9650 36600～172000 45 ~ 500
16D 730 ~ 1450 1885～10980 44300～211000 75 ~ 710
17D 730 ~ 960 2128～5433 53200～168000 90 ~ 280
18D 730 ~ 960 2386～6091 63100～199000 110 ~ 355
19D 730 ~ 960 2658～6787 74200～234000 160 ~ 500
20D 730 ~ 960 2946～7520 86700～273000 200 ~ 630
21D 580 ~ 960 2050～8290 79500～316000 200 ~ 800
22D 580 ~ 960 2250～9099 92200～363000 220 ~ 1000
23.5D 580 ~ 960 2567～10380 112000～443000 220 ~ 1400
25D 580 ~ 730 6794～6464 134000～406000 355 ~ 800
26.5D 480 ~ 730 2236～7633 132000～483000 220 ~ 1120
28D 480 ~ 730 2496～8522 156000～569000 315 ~ 1400
29.5D 480 ~ 730 2771 ~ 9460 183000～667000 400 ~ 2000


Product Features



1. In the use of common base, the installation is very simple and requires little support from a professional technician.

2. The range of high-efficiency working conditions is wide, the machine numbers are arranged intensively, and it is easy to select high-efficiency working conditions.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

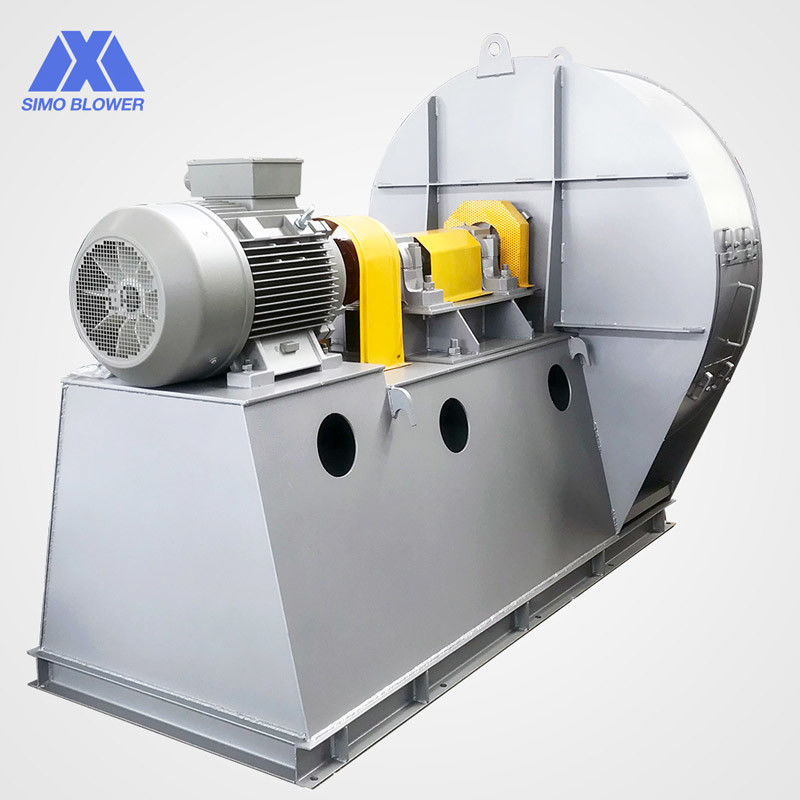

Q345 Forward Explosion Proof Blower Ventilation Backward 0
