| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
|---|---|---|---|
| Power Source: | Three Phase AC Motor | Motor Type: | Three Phase AC Motor |
| Bearing Type: | Rolling Bearing | Medium: | Clean Air/Dusty Air |
| High Light: | V Belt Driving Explosion Proof Blower,High Pressure Explosion Proof Blower,2950r/min Blower Explosion Proof |
||

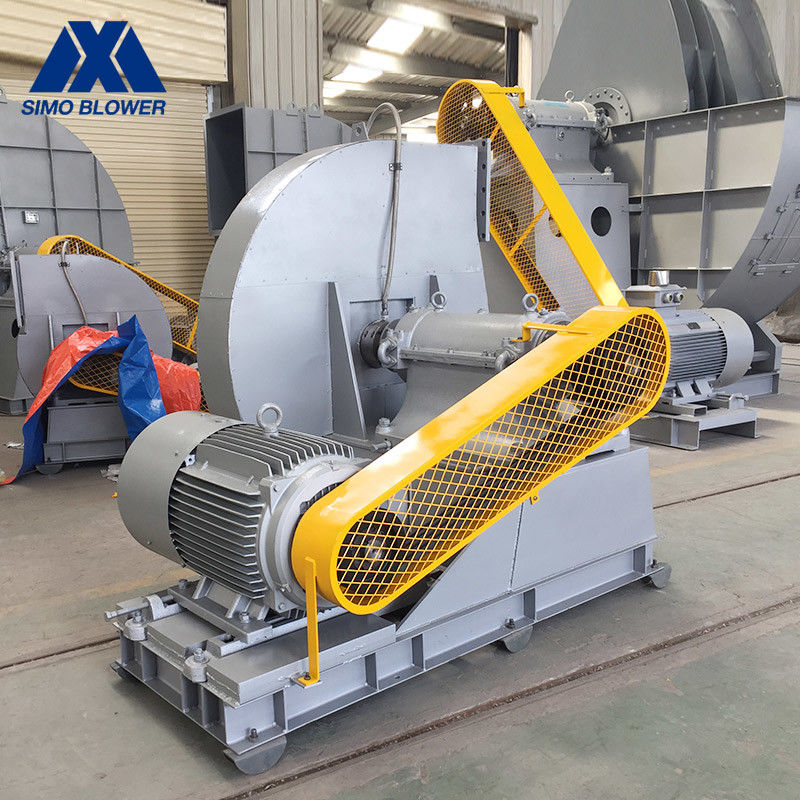

V-Belt Driving Long Lifetime Explosion Proof Blower High Pressure
Introduction
9-03 series fan-type iron furnace special high-pressure centrifugal fan, is suitable for IL/h, 2L/h, 3L/h, 3L/h, 7L/h melting rate of iron furnace blast performance requirements.
The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.
Detail introduction
1. The fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
2. The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-03 | 8C | 2950 | 16680～17631 | 3019～8117 | 37～55 |
| 9C | 2950 | 21348～22314 | 4326～11632 | 75～110 |
Product Features
1. The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
2. After the completion of production, after running test and vibration value detection, the operation is reliable.
3. It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
FAQ
1,What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
