Quality 16Mn Medium Pressure Anticorrosion Materials Drying Induced Draft Fan factory

16Mn Medium Pressure Anticorrosion Materials Drying Induced Draft Fan

Name: 16Mn Medium Pressure Anticorrosion Materials Drying Induced Draft Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 6-08
Price: 2,500.00 USD
Availability: InStock

Brand Name

SIMO

Product Model

SIMO Blower 6-08

Certificate

CE, ISO9001:2008,TUV

Country Of Origin

Henan China

MOQ

1 Set

Unit Price

Negotiable

Payment Method

T/T, L/C, Payment Term Is Negotiable

Supply Capacity

500 Sets Per Month

Product Details

Highlight:

Materials Drying Induced Draft Fan

16Mn Medium Pressure Induced Draft Fan

Anticorrosion Id Fan Blower

Application: Industrial Ventilation

Voltage: 380V/415V/440V/660V/6KV/10KV

After-Sales Service Provided: Field Installation, Commissioning And Training

Bearing Cooling: Air Cooling Or Circulating Water Cooling

Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung

Power Source: Three Phase AC Motor

Product Description

Detailed Specifications And Features

16Mn Medium Pressure Anticorrosion Materials Drying Induced Draft Fan

Introduction Of Centrifugal Fan

Medium requirements for 6-08 series id fan in boiler: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.

This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

Technical data

series	model	Rotation Speed (r/min)	Total Pressure (Pa)	Air Capacity (m³/h)	Power (kW)
6-08	12D	1450	3581～5356	14800～35200	55～75
	12.5D	1450	3885～5808	16800～39800	55～75
	13D	1450	4208～6288	18900～44800	75～90
	13.5D	1450	4532～6779	21100～50200	90～110
	14D	1450	4874～7289	23600～55900	110～132
	14.5D	1450	5229～7819	26200～62200	132～160
	15D	1450	5600～8365	29000～68800	132～220
	15.5D	1450	5972～8934	32000～75900	160～220
	16D	1450	6365～9573	35200～83500	220～280
	16.5D	1450	6777～10121	38600～91600	250～315
	17D	1450	7189～10739	42200～100000	280～355
	17.5D	1450	7620～11386	46000～108000	315～400
	18D	1450	8061～12043	50100～119000	355～500
	18.5D	1450	8512～12720	54400～129000	450～560
	19D	1450	8983～13416	58900～140000	500～630
	19.5D	1450	9464～14132	63600～151000	560～710
	20D	1450	10307～14867	68700～163000	630～800

Application

1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.

2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.

3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.

Product Advantages

1. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.

2. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.

3. After running test and vibration value detection, the operation is reliable.

FAQ

1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

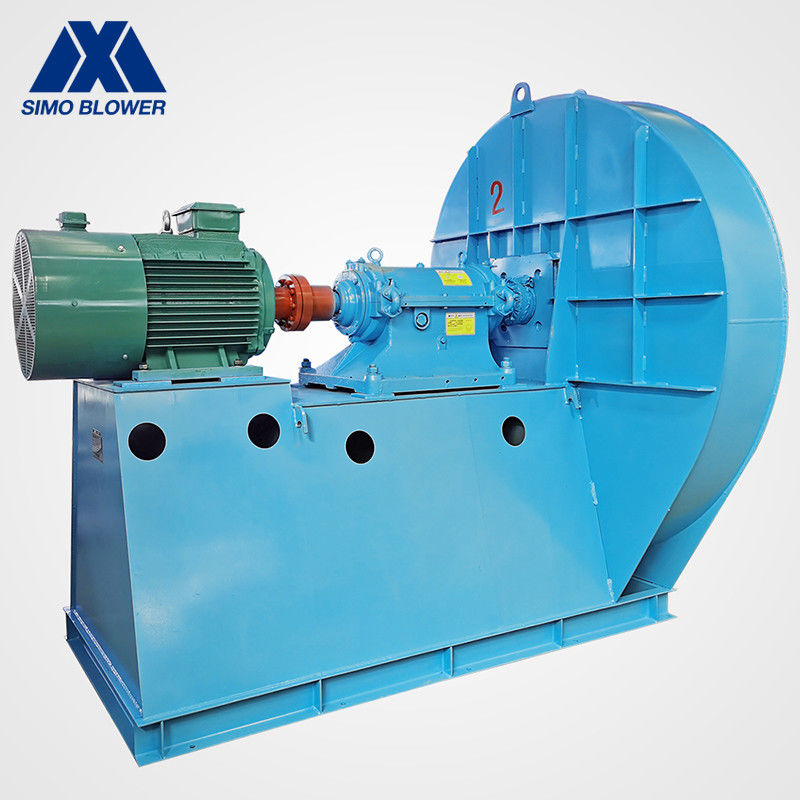

16Mn Medium Pressure Anticorrosion Materials Drying Induced Draft Fan 0
