| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-05 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Lubrication: | Oil Bath Lubrication |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training | Impeller: | Dynamic Balanced |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Type: | Centrifugal Fan |
| High Light: | ac motor high temperature centrifugal fan,anti explosion high temperature centrifugal fan,cement kiln high temperature centrifugal blower |
||

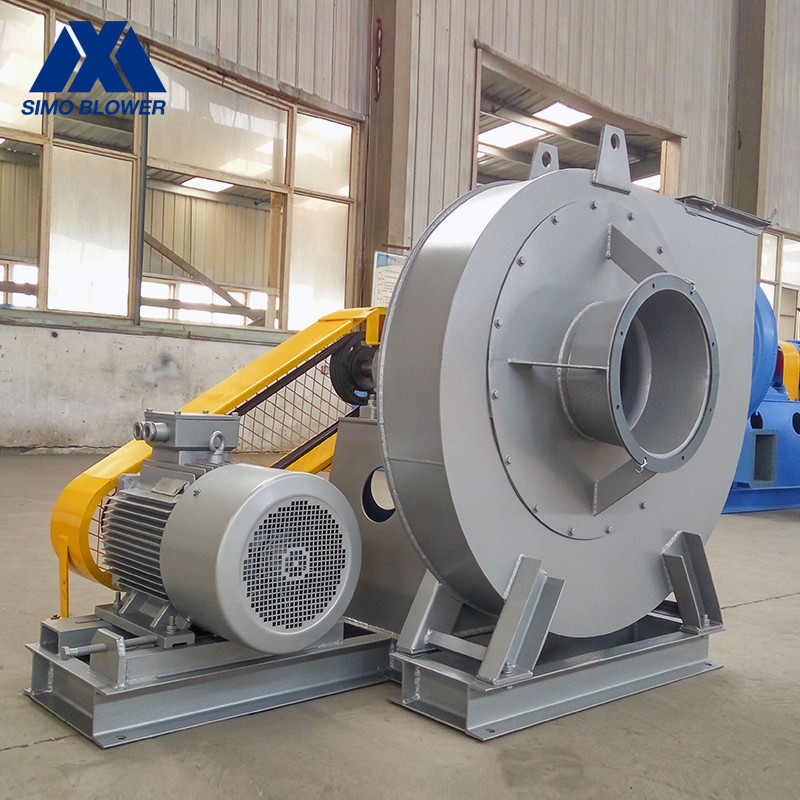

AC Motor Anti-Explosion Cement Kiln High Temperature Centrifugal Fan
Introduction
The 6-05 medium-pressure series fan can meet the performance requirements of large flow and high pressure at the same time, and has the characteristics of high efficiency and low noise. It is a series centrifugal fan products with a wide range of performance.
It can be selected if the intake conditions are equivalent and the performance is suitable.
It can be used to transport normal temperature or high temperature clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials, fiber materials, etc.
Product features
1. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
2. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
3. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
Technical specifications
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-05 | 3.55D | 2950～3150 | 588～1651 | 841～3162 | 1.5～2.2 |
| 4D | 3450 | 1676～1893 | 1355～3996 | 3 | |
| 4.5D | 2925～3250 | 1667～2873 | 2317～5522 | 4～5.5 | |
| 5.4D | 2600～2900 | 2064～3240 | 3900～8901 | 7.5～11 | |
| 7.1D | 1915～2100 | 1859～3283 | 7113～15919 | 11～18.5 | |
| 9D | 1640～1750 | 2191～3338 | 12407～25630 | 22～30 | |
| 10D | 1600 | 3444～2575 | 16604～32144 | 37 | |
| 11.2D | 1480 | 3697～2764 | 21578～41773 | 45 | |
| 4086～3055 | 21578～41773 | 55 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
