AC Motor ID Explosion Proof Centrifugal Fan Large Capacity
Large Capacity Explosion Proof Centrifugal Fan
,AC Motor Explosion Proof Centrifugal Fan
,Oil Bath Lubrication Explosion Proof Blower

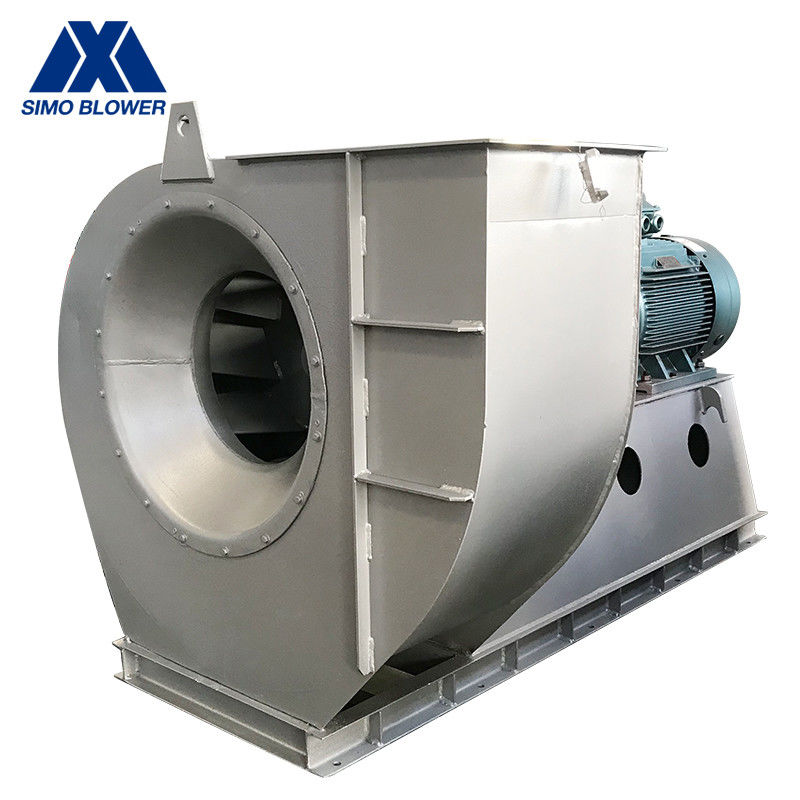

AC Motor Large Capacity ID Explosion Proof Centrifugal Blower Fan
Introduction Of Centrifugal Fan
The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.
It can be used as both an input gas and an output gas. The type of gas transported is air and other non-self-igniting, non-self-explosive, non-surrounding, harmless to the human body and is non-corrosive to steel materials.
It can also be made into explosion-proof and flame-retardant type according to the requirements of use. It is suitable for occasions with flammable, explosive and corrosive gases.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-09 | 6D | 960 ~ 1450 | 317 ~ 1139 | 4420～13353 | 1.5 ~ 4 |
| 8D | 730 ~ 1450 | 376 ~ 2032 | 7968～29344 | 3 ~ 18.5 | |
| 10D | 730 ~ 1450 | 637 ~ 3202 | 20360 ~ 56605 | 7.5 ~ 55 | |
| 12D | 730 ~ 960 | 919 ~ 2013 | 35182～64759 | 18.5 ~ 45 |
Product Features
1. The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.
2. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.
3. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
-
