| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-09 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Motor: | SIEMENS/ABB/By Your Demand |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Lubrication: | Oil Bath Lubrication |
| High Light: | Low Pressure FD Explosion Proof Blower,Single Suction Explosion Proof Blower,SWSI Low Pressure Centrifugal Fan |
||

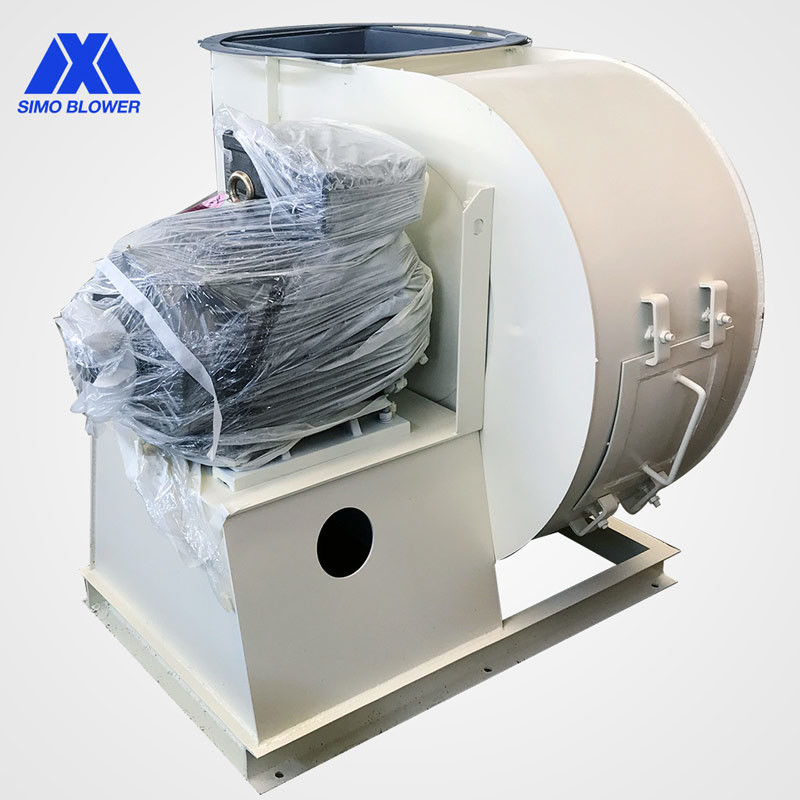

Single Suction Industrial Low Pressure FD Explosion Proof Blower
Introduction Of Centrifugal Fan
The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.
Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.
For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-09 | 2.8A | 2900 | 994～606 | 1131～2356 | 1.5 |
| 3.2A | 1450 ~ 2900 | 198 ~1300 | 844 ～ 3517 | 1.1 ~ 2.2 | |
| 3.6A | 1450 ~ 2900 | 247 ~ 1578 | 1332 ～ 5268 | 1.1 ~ 3 | |
| 4A | 1450 ~ 2900 | 329 ~ 2014 | 2006 ～ 7419 | 1.1 ~ 5.5 | |
| 4.5A | 1450 ~ 2900 | 416 ~ 2554 | 2856 ～ 10562 | 1.1 ~ 7.5 | |
| 5A | 1450 ~ 2900 | 502 ~ 3187 | 3864 ～15456 | 2.2 ~ 15 | |
| 6A | 960 ~ 1450 | 317 ~ 1139 | 4420 ～ 13353 | 1.5 ~ 4 |
Product Features
1. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
2. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
3. There are a variety of accessories to choose from.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
