| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-14 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Voltage: | 380V/415V/440V/660V/6KV/10KV |
|---|---|---|---|
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Lubrication: | Oil Bath Lubrication |
| High Light: | Biomass Boiler Explosion Proof Blower,Alloy Steel Forward Explosion Proof Blower,SWSI Centrifugal Ventilation Fans |
||

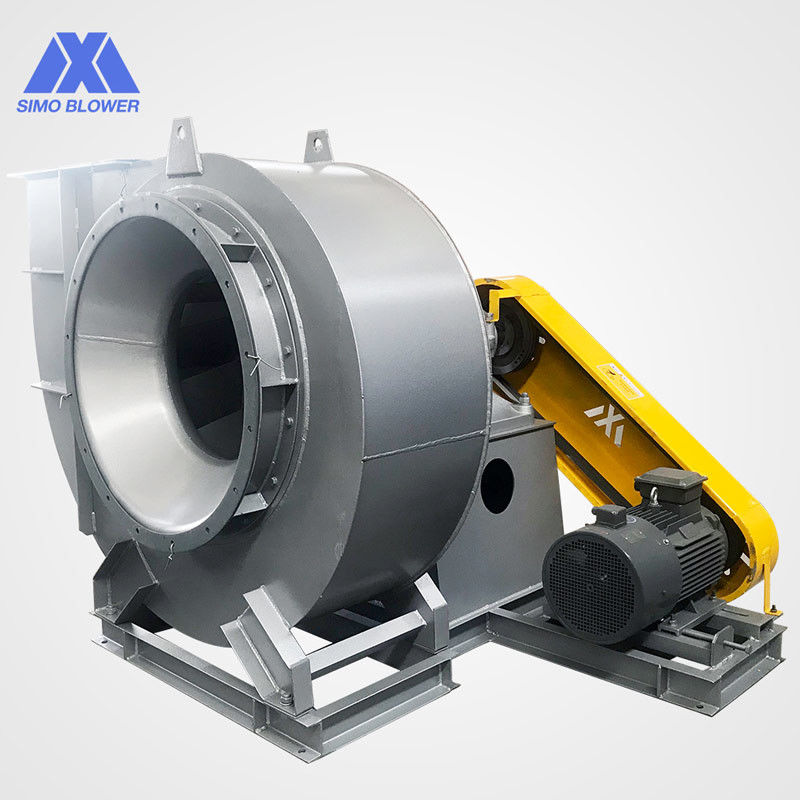

Alloy Steel Long Lifetime Forward Biomass Boiler Explosion Proof Blower
Introduction Of Centrifugal Fan
The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.
It can be used to input gas as well as to output gas.
The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-10 | 8C | 1450 | 2104～1400 | 16156～30993 | 18.55 |
| 9C | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 | |
| 10C | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 | |
| 11C | 730 ~ 1450 | 669 ~ 4003 | 21144 ～ 80570 | 11 ~ 90 | |
| 12C | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 | |
| 14C | 730 ~ 1450 | 1086 ~ 6541 | 43591 ～166100 | 37 ~ 315 | |
| 16C | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 | |
| 18C | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 | |
| 20C | 580 ~ 960 | 1400 ~ 5837 | 100970 ～ 320610 | 110 ~ 520 | |
| 22C | 480 ~ 960 | 1216 ~ 6865 | 116000 ～ 434000 | 140 ~ 850 | |
| 25C | 480 ~ 730 | 1579 ~ 5138 | 171000 ～ 484000 | 165 ~ 700 | |
| 28C | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 | |
| 29.5C | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
Product Features
Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.
After the production is completed, all products are tested for running and vibration values for reliable operation.
The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
