| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-06 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | General Ventilation | Voltage: | 380V/415V/440V/660V/6KV/10KV |
|---|---|---|---|
| Category: | Blower | Electric Current Type: | AC |
| Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Type: | Centrifugal Fan |
| High Light: | V Belt Induced Draft Fan,SWSI industrial id fan,V Belt induced draught fan |
||

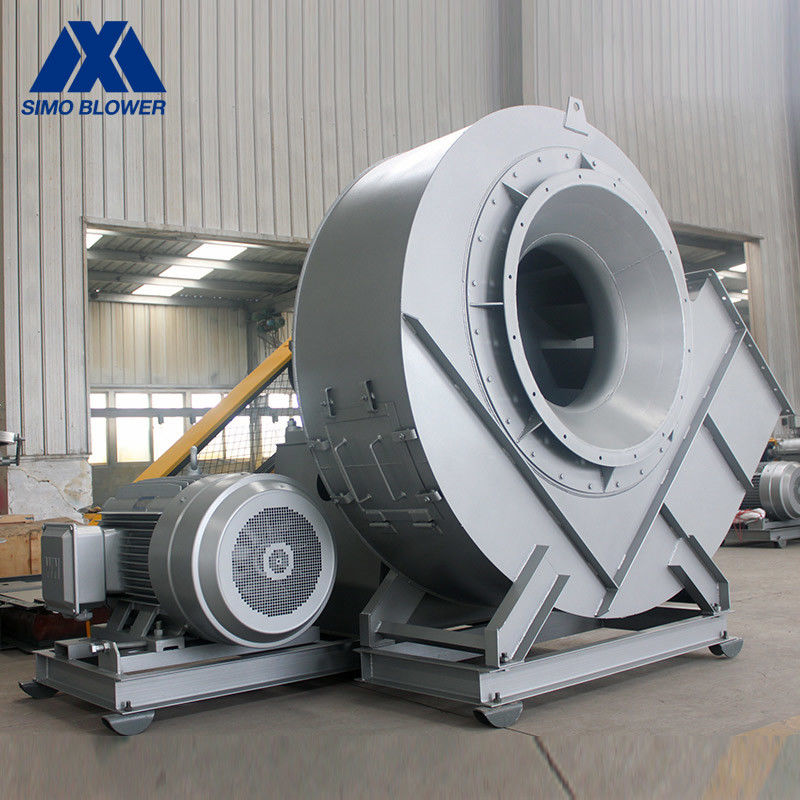

V-Belt Driven High Temperature High Wear Resistance Induced Draft Fan
Introduction Of Centrifugal Fan
1. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.
2. The fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.
3. Made of high quality carbon steel, stainless steel or other metal materials are available upon request.
4. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
5. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance.
For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-06 | 8C | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9C | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 | |
| 10C | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 | |
| 11C | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 | |
| 12C | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 | |
| 13C | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 | |
| 14C | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 | |
| 15C | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 | |
| 16C | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 | |
| 17C | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 | |
| 18C | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 | |
| 19C | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 | |
| 20C | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 | |
| 21C | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 | |
| 22C | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 | |
| 23.5C | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 | |
| 25C | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 | |
| 26.5C | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 | |
| 28C | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 | |
| 29.5C | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
Product Advantages
1. Large parts and components are disassembled and transported, so that most parts can be loaded into containers for transportation, saving you shipping costs.
2. Each component has an installation number. Under the guidance of the installation manual, the system assembly can be completed smoothly.
3. Provide on-site arrangement and guidance services.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
