Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 6-04 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Application: | General Ventilation | Voltage: | 380V/415V/440V/660V/6KV/10KV |
---|---|---|---|
Category: | Blower | Impeller: | Dynamic Balanced |
Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Lubrication: | Oil Bath Lubrication |
High Light: | Aluminium Alloyed Induced Draft Fan,Industrial Kilns Induced Draft Fan,Aluminium Alloyed ID Fan |

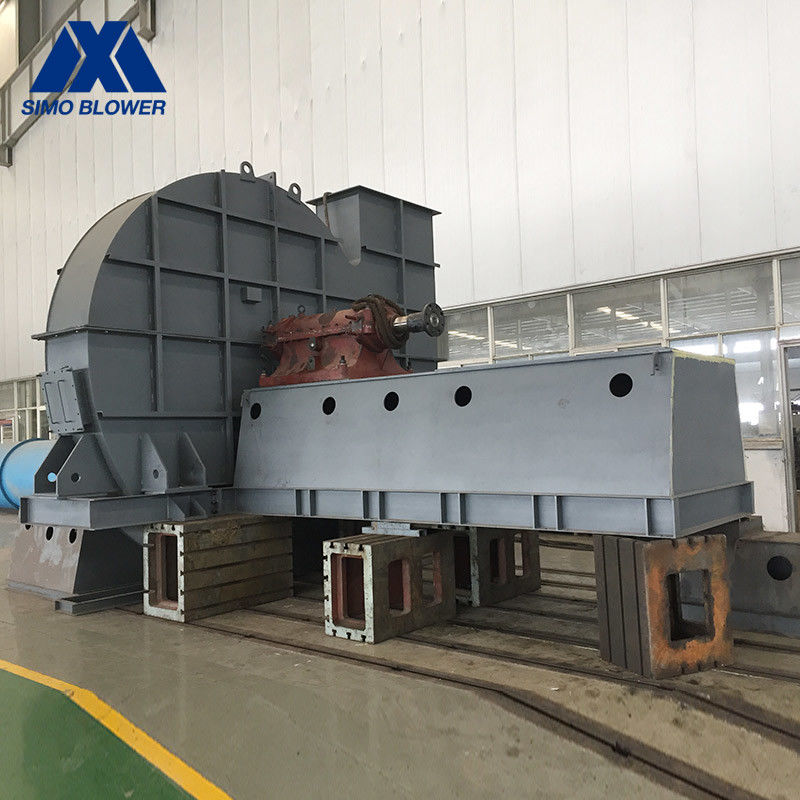

Aluminium Alloyed Forward Industrial Kilns Induced Draft Fan
Introduction Of Centrifugal Fan
6-04 series fans have high pressure coefficient, low peripheral speed, low noise, flat performance curve and wide area of high efficiency.
Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance. For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.
The material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature &high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft at high temperature still maintain reliable strength.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
6-04 | 12D | 1450 | 3581~5356 | 14800~35200 | 55~75 |
12.5D | 1450 | 3885~5808 | 16800~39800 | 55~75 | |
13D | 1450 | 4208~6288 | 18900~44800 | 75~90 | |
13.5D | 1450 | 4532~6779 | 21100~50200 | 90~110 | |
14D | 1450 | 4874~7289 | 23600~55900 | 110~132 | |
14.5D | 1450 | 5229~7819 | 26200~62200 | 132~160 | |
15D | 1450 | 5600~8365 | 29000~68800 | 132~220 | |
15.5D | 1450 | 5972~8934 | 32000~75900 | 160~220 | |
16D | 1450 | 6365~9573 | 35200~83500 | 220~280 | |
16.5D | 1450 | 6777~10121 | 38600~91600 | 250~315 | |
17D | 1450 | 7189~10739 | 42200~100000 | 280~355 | |
17.5D | 1450 | 7620~11386 | 46000~108000 | 315~400 | |
18D | 1450 | 8061~12043 | 50100~119000 | 355~500 | |
18.5D | 1450 | 8512~12720 | 54400~129000 | 450~560 | |
19D | 1450 | 8983~13416 | 58900~140000 | 500~630 | |
19.5D | 1450 | 9464~14132 | 63600~151000 | 560~710 | |
20D | 1450 | 10307~14867 | 68700~163000 | 630~800 |
Product Advantages
1. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
2. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
3. After running test and vibration value detection, the operation is reliable.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
