| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Feature: | High Performance |
|---|---|---|---|
| After-sales Service Provided: | Field Installation, Commissioning And Training | Drivetrain: | Direct/Coupling Driven/V-belt Driven |
| Noise: | Optional | Bearing Type: | Rolling Bearing |
| High Light: | Antifraying Id Fan,HG785 Id Fan,Alloyed Steel Id Fan |
||

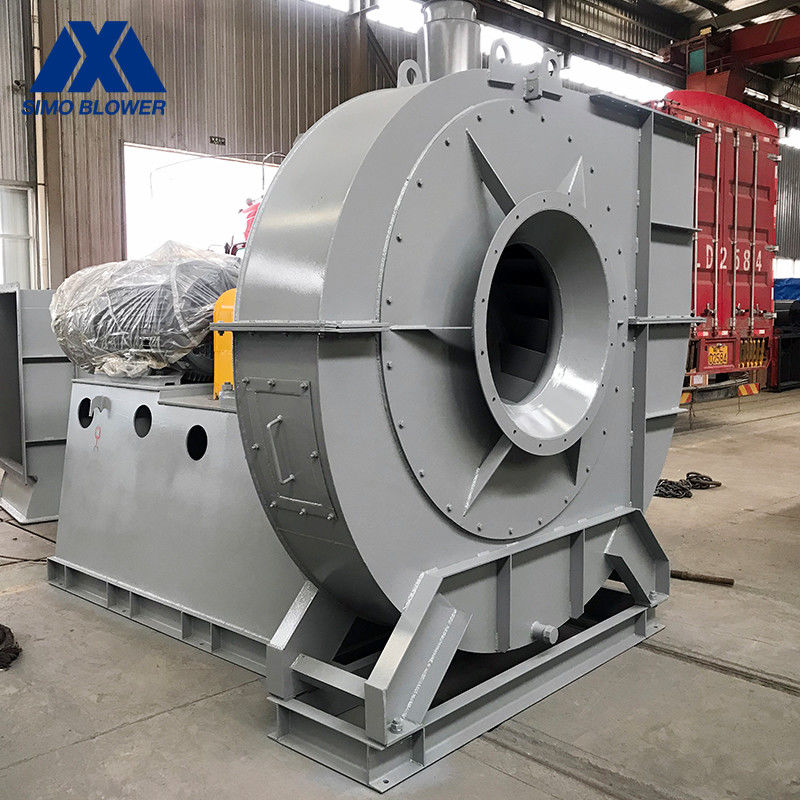

HG785 Alloyed Steel Antifraying Long Life Cooling Induced Draft Fan
Introduction Of Centrifugal Fan
Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.
Medium temperature: The medium temperature of standard fans is not more than 80 °C, the V-belt driving type fan can transport media below 150 °C for a long time when it is added to the heat-dissipating wheel.
It is widely used in environmental dust removal, material transportation, and industrial equipment.
They are used in forging furnaces and high pressure forced ventilation and are widely used to transport materials and air. The maximum temperature should not exceed 250 degrees Celsius.
Suitable for flow and dust removal ventilation systems in high pressure heads.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-08 | 8D | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9D | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 | |
| 10D | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 | |
| 11D | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 | |
| 12D | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 | |
| 13D | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 | |
| 14D | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 | |
| 15D | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 | |
| 16D | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 | |
| 17D | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 | |
| 18D | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 | |
| 19D | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 | |
| 20D | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 | |
| 21D | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 | |
| 22D | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 | |
| 23.5D | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 | |
| 25D | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 | |
| 26.5D | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 | |
| 28D | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 | |
| 29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
Application
1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.
2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.
3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.
Product Advantages
1. This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2. The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.
3. V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to disassemble.
5. The collector is equipped with a mounting flange to facilitate the customer to use the pipeline.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
