Heavy Duty Low Pressure Induced Draft Centrifugal Fan V Belt Driving

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Motor Type: Three Phase AC Motor Feature: Energy-Efficient
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Drivetrain: Direct/Coupling Driven/V-belt Driven
Noise: Optional Blade: Backward
High Light:

Low Pressure Induced Draft Centrifugal Fan

,

Heavy Duty Induced Draft Centrifugal Fan

,

V Belt Induced Draft Centrifugal Fan

Heavy Duty Low Pressure V-Belt Driving Induced Draft Centrifugal Fan



Introduction Of Centrifugal Fan



The 4-09 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan. No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-09 7C 710 ~ 1800 233 ~ 2406 493924038 1.5 ~ 15
8C 630 ~ 1800 240 ~ 3150 6542 35882 1.5 ~ 37
10C 520 ~ 1300 258 ~ 2551 1093150807 3 ~ 37
12C 420 ~ 1170 242 ~ 2980 15256 ~ 79015 4 ~ 75
1040 23491493 3777870236 55



Product Advantages



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

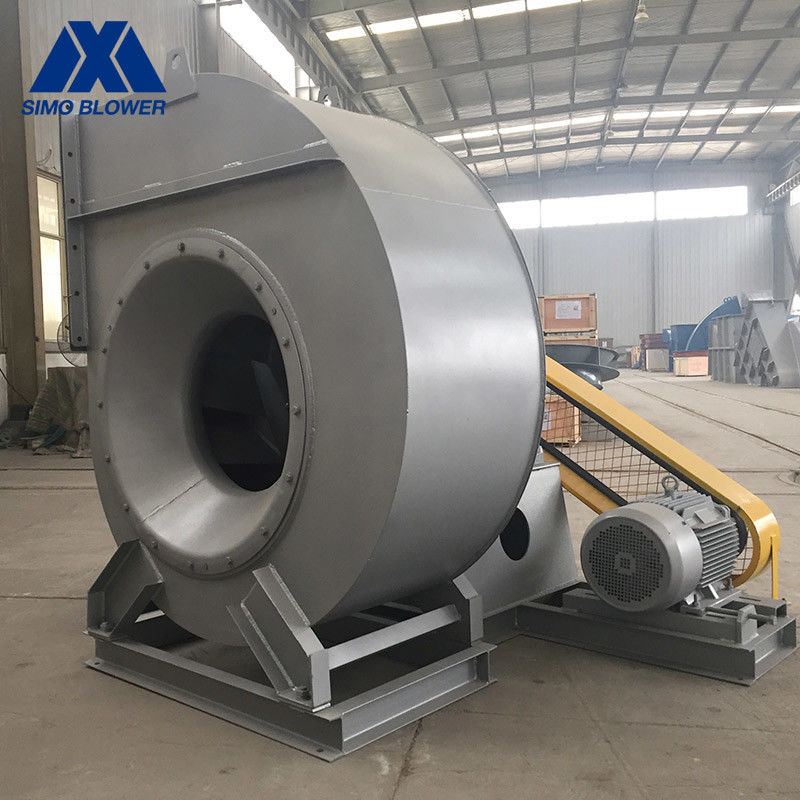

Heavy Duty Low Pressure Induced Draft Centrifugal Fan V Belt Driving 0

Heavy Duty Low Pressure Induced Draft Centrifugal Fan V Belt Driving 1

Heavy Duty Low Pressure Induced Draft Centrifugal Fan V Belt Driving 2
