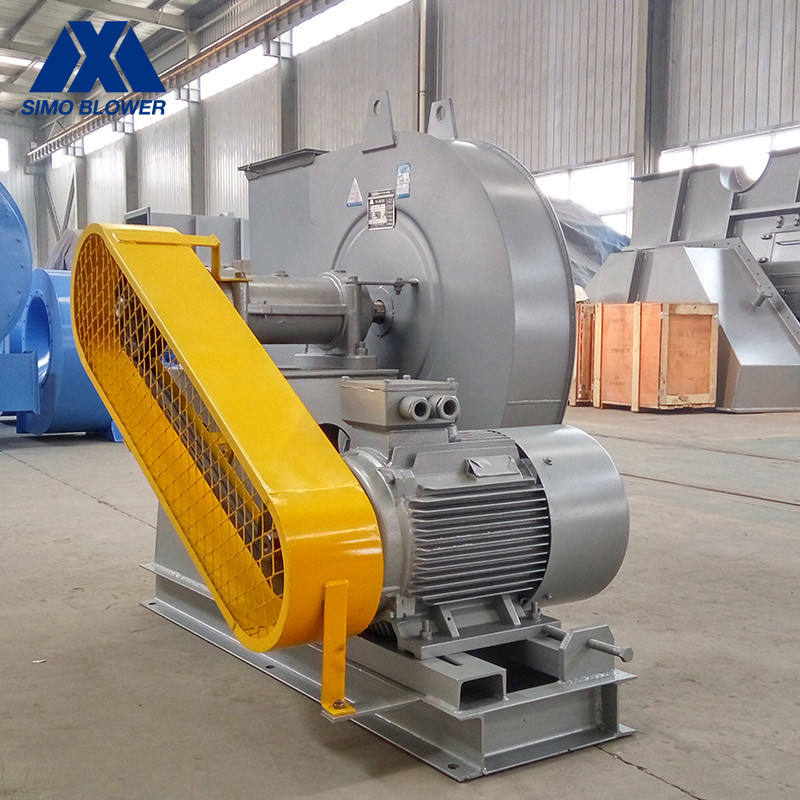

AC Motor Long Life Biomass Boiler Centrifugal Ventilation Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller: Dynamic Balanced Current Type: AC
Material: Carbon Steel/Alloy Steel/Stainless Steel Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Impeller Test: Ultrasonic Flaw Detection Delivery Time: 30 Days
High Light:

Biomass Boiler Centrifugal Ventilation Fans

,

AC Motor Centrifugal Ventilation Fans

,

Biomass Boiler Centrifugal blower

AC Motor Long Life Biomass Boiler Centrifugal Ventilation Fans

Introduction


Medium temperature: The medium temperature of standard fans is not more than 80 °C, the V-belt driving type fan can transport media below 150 °C for a long time when it is added to the heat-dissipating wheel.

It is widely used in environmental dust removal, material transportation, and industrial equipment.



Application

It is used to transport various common gases and hard materials in industrial production, and is suitable for various harsh conditions such as high temperature, wear and corrosion.

Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-05 6C 20002880 20795884 15984375 311
7C 16802880 80125864 36556948 418.5
8C 15002880 207910474 284210371 437



Advantages and Features


1. This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

2. The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.

3. V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2,How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3,Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
