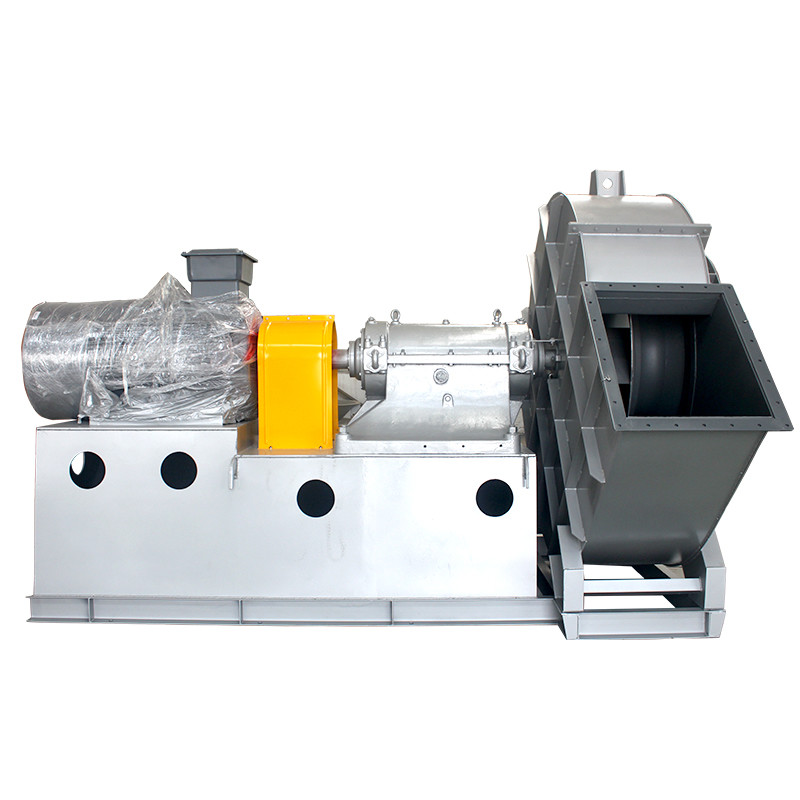

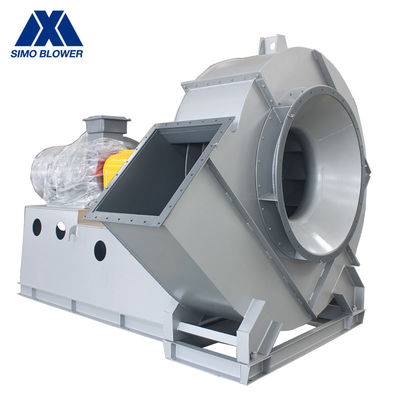

High Air Flow Backward Antiwear Gas Delivery Centrifugal Ventilation Fans
Introduction
6-12 series high-pressure heavy-duty centrifugal fan, suitable for conveying non-flammable gas and granule/powder/chip/fiber material at normal temperature or high temperature.
The output gas flow is slightly larger than the 6-11 series heavy-duty centrifugal fan, the air volume is large, and the pressure is high, smooth operation, high reliability and long life.
It is widely used in industrial applications such as sintering systems, large-scale dust collectors, feed/air supply/exhaustion of large industrial rotary kiln/calcining kiln, air intake of large boilers, and desulfurization and denitration of industrial waste gas.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-12 | 3.15D | 1600～3150 | 354～1880 | 755～3323 | 0.75～3 |
| 4D | 1250～2500 | 345～1933 | 1184～5495 | 0.75～4 | |
| 5D | 1400～2000 | 675～1953 | 2487～8623 | 2.2～7.5 | |
| 6.3D | 1000～1600 | 344～1985 | 1776～13799 | 1.1～11 | |
| 8D | 1120～1400 | 547～1517 | 3554～12074 | 3～7.5 | |
| 10D | 800～1250 | 350～1953 | 2843～22075 | 1.5～15 | |
| 12.5D | 400～1000 | 350～2043 | 7402～56902 | 2.2～22 |
Product Features
1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.
2. The blade placement angle is optimized, more wear-resistant and longer service life.
3. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.
FAQ
1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.
2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.
3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.
4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.
5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.
6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
-
-
-
-
-
-
-
