| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-06 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Voltage: | 380V/415V/440V/660V/6KV/10KV | After-sales Service Provided: | Field Installation, Commissioning And Training |
|---|---|---|---|
| Bearing Cooling: | Air Cooling Or Circulating Water Cooling | Category: | Blower |
| Type: | Centrifugal Fan | Impeller Test: | Ultrasonic Flaw Detection |
| High Light: | Kiln Centrifugal Ventilation Fans,Double Inlet Centrifugal Ventilation Fans,Centrifugal Ventilation Fans Alloy Steel |
||

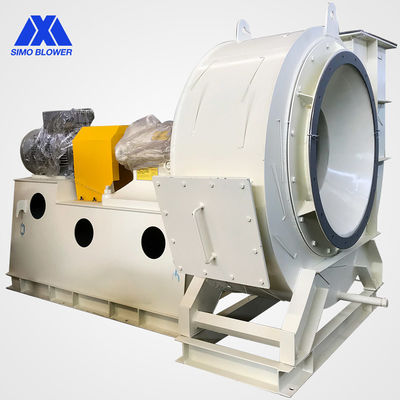

Alloy Steel Double Inlet Wear Resistant Brick Kiln Centrifugal Ventilation Fans
Introduction
This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium transported by the forced draft fan is air, and the medium transported by the induced draft fan is flue gas or a gas containing impurity particles.
It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.If it contains large impurities, it also can be used, but the service life is relatively shortened.
The maximum temperature used for the fan does not exceed 250°C.
It has the characteristics of high efficiency and low noise, and this series is a range of centrifugal fans with a wide range of performance.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-06 | 8D | 1450 | 1859～2745 | 11000～26400 | 15 ~ 22 |
| 9D | 1450 | 2353～3474 | 15700～37500 | 30 ~ 45 | |
| 10D | 1450 | 2905～4289 | 21500～51500 | 45 ~ 75 | |
| 11D | 960 ~ 1450 | 1541～5190 | 22700～68500 | 22 ~ 110 | |
| 12D | 960 ~ 1450 | 1834～6176 | 24600～89000 | 37 ~ 160 | |
| 13D | 960 ~ 1450 | 2152～7248 | 31200～113000 | 55 ~ 250 | |
| 14D | 960 ~ 1450 | 2496～8406 | 39000～141000 | 75 ~ 400 | |
| 15D | 730 ~ 1450 | 1657～9650 | 36600～172000 | 45 ~ 500 | |
| 16D | 730 ~ 1450 | 1885～10980 | 44300～211000 | 75 ~ 710 | |
| 17D | 730 ~ 960 | 2128～5433 | 53200～168000 | 90 ~ 280 | |
| 18D | 730 ~ 960 | 2386～6091 | 63100～199000 | 110 ~ 355 | |
| 19D | 730 ~ 960 | 2658～6787 | 74200～234000 | 160 ~ 500 | |
| 20D | 730 ~ 960 | 2946～7520 | 86700～273000 | 200 ~ 630 | |
| 21D | 580 ~ 960 | 2050～8290 | 79500～316000 | 200 ~ 800 | |
| 22D | 580 ~ 960 | 2250～9099 | 92200～363000 | 220 ~ 1000 | |
| 23.5D | 580 ~ 960 | 2567～10380 | 112000～443000 | 220 ~ 1400 | |
| 25D | 580 ~ 730 | 6794～6464 | 134000～406000 | 355 ~ 800 | |
| 26.5D | 480 ~ 730 | 2236～7633 | 132000～483000 | 220 ~ 1120 | |
| 28D | 480 ~ 730 | 2496～8522 | 156000～569000 | 315 ~ 1400 | |
| 29.5D | 480 ~ 730 | 2771 ~ 9460 | 183000～667000 | 400 ~ 2000 |
Product Features
1. The fan is integrated or split assembly.
2. The fan is fully equipped.
3. Relevant parameters complete.
4. The fan is easy to install and repair.
FAQ
1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.
2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.
3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.
4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.
5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.
6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
