16Mn Low Pressure Energy Efficiency Air Supply Explosion Proof Blower Fan

16Mn Low Pressure Energy Efficiency Air Supply Explosion Proof Blower Fan
Brand Name
SIMO
Product Model
SIMO Blower 4-10
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

16Mn Explosion Proof Blower

,

Low Pressure Explosion Proof Blower

,

16Mn Explosion Proof Fan
Application: Industrial Ventilation
Current Type: AC
Drivetrain: Direct/Coupling Driven/V-belt Driven
Mounting: Free Standing
Noise: Optional
Power Source: Three Phase AC Motor
Product Description
Detailed Specifications And Features

16Mn Low Pressure Energy Efficiency Air Supply Explosion Proof Blower Fan



Introduction Of Centrifugal Fan



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.



Technical data



series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
4-10 8D 1450 2104～1400 16156～30993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 ～ 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 ～166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 ～ 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 ～ 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 ～ 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Product Features



1. It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.

2. The fan blade placement angle is optimized, more wear-resistant and longer service life.

3. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.



FAQ



1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :     A:5-35 days.

3,Q : What’s your payment terms?

   A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
  A: 1 year.
5,Q: Is your company factory or trade company?

  A: We have our own factory, our type is factory +trade.

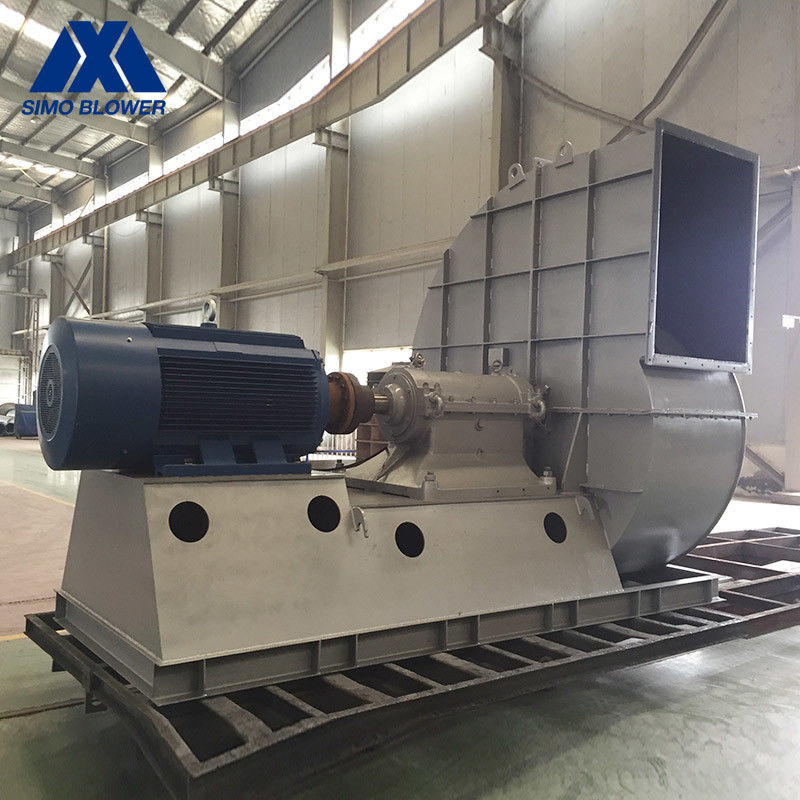

16Mn Low Pressure Energy Efficiency Air Supply Explosion Proof Blower Fan 0
