| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Application: | Industrial Ventilation | Current Type: | AC |
|---|---|---|---|
| Voltage: | 380V/415V/440V/660V/6KV/10KV | Mounting: | Free Standing |
| Noise: | Optional | Power Source: | Three Phase AC Motor |
| High Light: | CFB Boiler Explosion Proof Blower,Aluminium Alloyed Explosion Proof Blower,Antiwear Explosion Proof Blower |
||

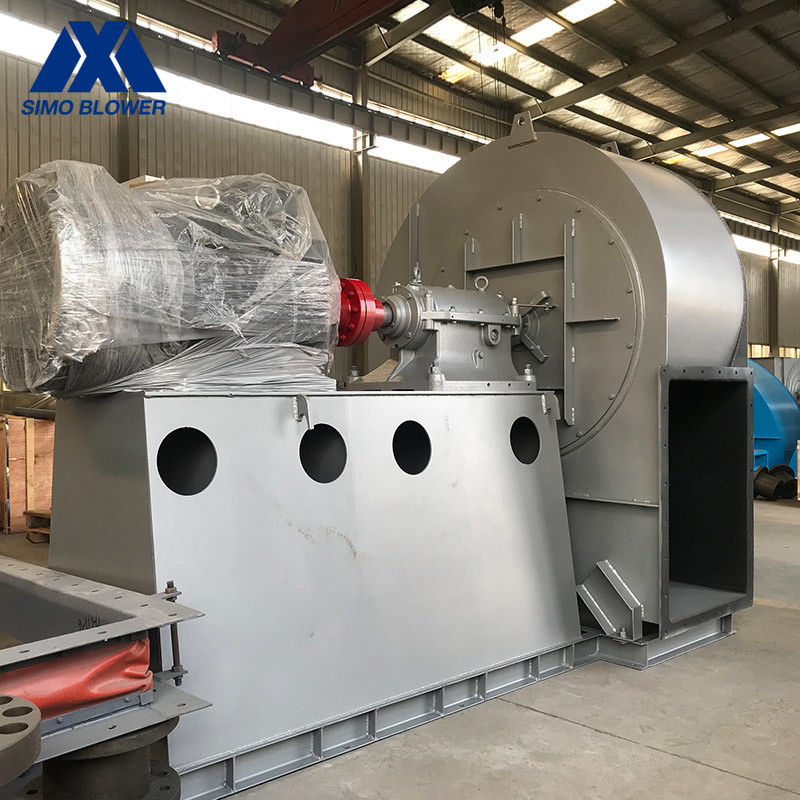

Aluminium Alloyed Antiwear CFB Boiler Explosion Proof Blower Centrifugal Fan
Introduction Of Centrifugal Fan
G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-10 | 8D | 1450 | 2104～1400 | 16156～30993 | 18.55 |
| 9D | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 | |
| 10D | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 | |
| 11D | 730 ~ 1450 | 669 ~ 4003 | 21144 ～ 80570 | 11 ~ 90 | |
| 12D | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 | |
| 14D | 730 ~ 1450 | 1086 ~ 6541 | 43591 ～166100 | 37 ~ 315 | |
| 16D | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 | |
| 18D | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 | |
| 20D | 580 ~ 960 | 1400 ~ 5837 | 100970 ～ 320610 | 110 ~ 520 | |
| 22D | 480 ~ 960 | 1216 ~ 6865 | 116000 ～ 434000 | 140 ~ 850 | |
| 25D | 480 ~ 730 | 1579 ~ 5138 | 171000 ～ 484000 | 165 ~ 700 | |
| 28D | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 | |
| 29.5D | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
Product Features
1. It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.
2. The fan blade placement angle is optimized, more wear-resistant and longer service life.
3. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.
4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
