|Place of Origin:||Henan China|
|Model Number:||SIMO Blower 4-10|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Wooden Case Packing, Steel pallet Packing|
|Delivery Time:||15-35 Days|
|Payment Terms:||T/T, L/C, Payment Term Is Negotiable|
|Supply Ability:||500 Sets Per Month|
|Mounting:||Free Standing||Bearing Type:||Rolling Bearing|
|Impeller Support:||SWSI (Single Width, Single Inlet), Impeller Overhung||Drivetrain:||Direct/Coupling Driven/V-belt Driven|
V-Belt Driving Induced Draft Fan,
Carbon Steel Induced Draft Fan,
V-Belt Driving ID Fan

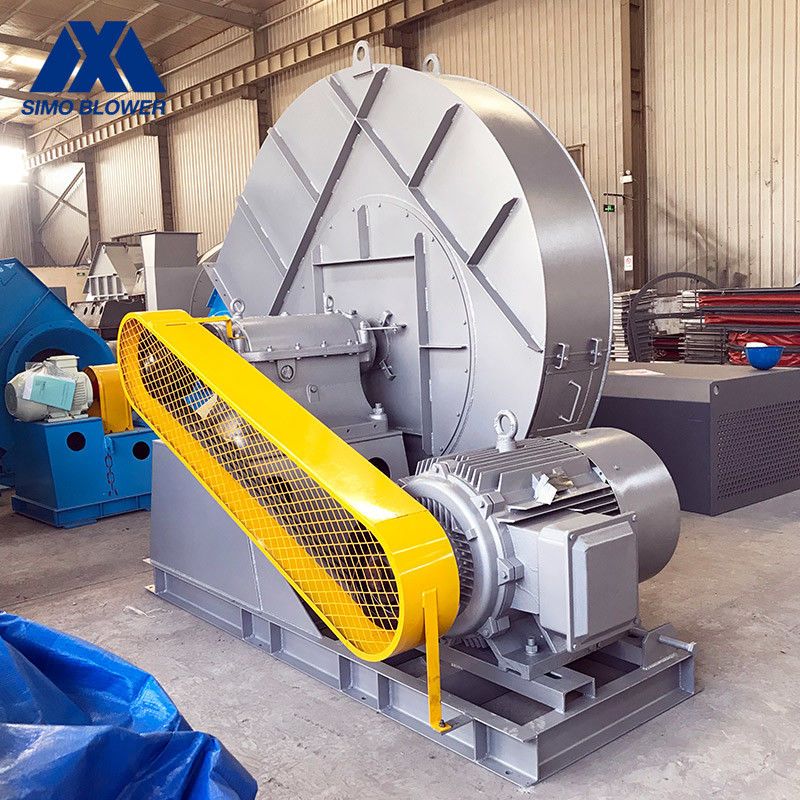

V-Belt Driving Carbon Steel Forward Explosionproof Induced Draft Fan
Introduction Of Centrifugal Fan
G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.
They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.
|9C||960 ~ 1450||775 ~ 2668||15229 ~ 44128||11 ~ 37|
|10C||730 ~ 1450||553 ~ 3301||15886 ~ 60533||7.5 ~ 55|
|11C||730 ~ 1450||669 ~ 4003||21144 ～ 80570||11 ~ 90|
|12C||730 ~ 1450||797 ~ 4777||25661 ~ 104600||15 ~ 132|
|14C||730 ~ 1450||1086 ~ 6541||43591 ～166100||37 ~ 315|
|16C||580 ~ 960||895 ~ 3709||51699 ~ 164150||45 ~ 185|
|18C||580 ~ 960||1133 ~ 4710||73610 ~ 233730||75 ~ 280|
|20C||580 ~ 960||1400 ~ 5837||100970 ～ 320610||110 ~ 520|
|22C||480 ~ 960||1216 ~ 6865||116000 ～ 434000||140 ~ 850|
|25C||480 ~ 730||1579 ~ 5138||171000 ～ 484000||165 ~ 700|
|28C||375 ~ 730||1205 ~ 6400||187000 ~ 680000||320 ~ 1250|
|29.5C||596 ~ 745||3236 ~ 7218||348000 ~ 810000||800 ~ 1600|
1. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.
2. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.
3. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.
1. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.
2. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
3. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
4. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
5. There are a variety of accessories to choose from.
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
