Place of Origin: | Henan China |
---|---|
Brand Name: | SIMO |
Certification: | CE, ISO9001:2008,TUV |
Model Number: | SIMO Blower 6-11 |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
Delivery Time: | 15-35 Days |
Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
Supply Ability: | 500 Sets Per Month |
Application: | Industrial Ventilation | Voltage: | 380V/415V/440V/660V/6KV/10KV |
---|---|---|---|
Current Type: | AC | After-sales Service Provided: | Field Installation, Commissioning And Training |
Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung | Power Source: | Three Phase AC Motor |
High Light: | 1450R/Min Explosion Proof Exhaust Blower,Coupling Driven Explosion Proof Exhaust Blower,1450R/Min explosion proof duct fan |

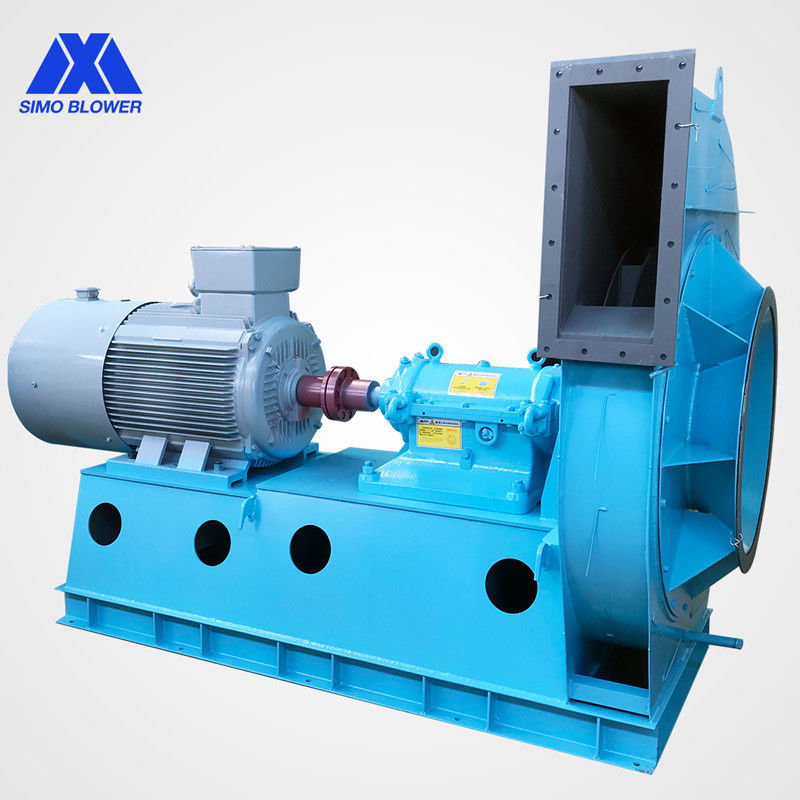

Carbon Steel Coupling Driven Backward Coal Mill Explosion Proof Blower
Introduction Of Centrifugal Fan
The 6-11 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.
It has excellent performance and can output high pressure.
It can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.
Technical data
series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
---|---|---|---|---|---|
6-11 | 14D | 1450 | 5435~7086 | 22889~41542 | 90~110 |
15D | 1450 | 6240~8134 | 28153~51095 | 110~160 | |
16D | 1450 | 7099~9255 | 34167~62011 | 160~220 | |
17D | 1450 | 8014~10448 | 40892~74379 | 220~280 | |
18D | 1450 | 8986~11713 | 48648~88292 | 280~400 | |
19D | 1450 | 10012~13051 | 57215~103840 | 400~500 | |
20D | 1450 | 11093~14461 | 66733~121114 | 450~630 |
Product Features
1. It can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.
2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.
3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
