| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 7-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Impeller: | Dynamic Balanced | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
|---|---|---|---|
| Mounting: | Free Standing | Delivery Time: | 30 Days |
| Electric Current Type: | AC | Bearing Type: | Rolling Bearing |
| High Light: | Coupling Forward Curved Centrifugal Fan,3456pa Forward Curved Centrifugal Fan,2360r/min forward curved centrifugal blower |
||

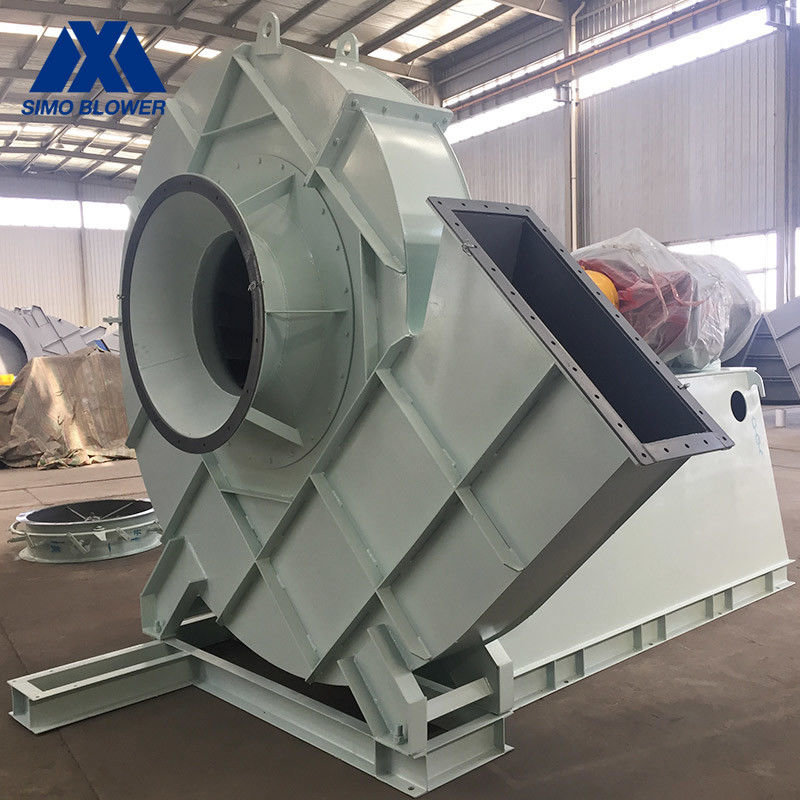

Coupling Driven Forward Metallurgy Explosion Proof Blower Centrifugal Fan
Product Features
At present, there are many series of boilers, and the situation of burning coal quality is quite different, after installing dust removal equipment and waste heat utilization equipment, insufficient pumping force affects normal operation.
In order to overcome the insufficient pumping force due to the above reasons, the furnace has a positive pressure, which affects the combustion and normal operation of the boiler.
Therefore, various types of boiler induced draft fans have been designed and manufactured for the design and manufacture of air volume, wind pressure and boiler matching efficiency. Provide each user to choose an application.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 7-10 | 5D | 3030 | 2982 ~ 3456 | 4486 ~ 8971 | 11 ~ 15 |
| 5.6D | 2360 | 2623～2264 | 4909～9817 | 11 | |
| 7.1D | 1830 ~ 2450 | 2188 ~ 3862 | 7757～20771 | 15 ~ 30 | |
| 8D | 1910 | 3517～3034 | 11582～23164 | 30 | |
| 9D | 1570 | 3002～2591 | 13555～27111 | 30 | |
| 10D | 1470 ~ 1650 | 2806 ~ 4109 | 17410 ～ 36478 | 45 ~ 55 |
Advantages
1.The fan pressure is high, therefore it is especially suitable for 1-20t/h industrial boilers, which equipped with spiral pipes and multi-tube dust collector.
2.The induced draft fan is made into a single suction, different impeller diameter from 400mm to 3000mm.
3.The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.
4.Fan drive mode is V-belt drive, coupling drive, double support type.
5.The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
