| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-05 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Impeller: | Dynamic Balanced | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
|---|---|---|---|
| Mounting: | Free Standing | Lubrication: | Oil Bath Lubrication |
| Electric Current Type: | AC | Bearing: | SKF/FAG/By Your Demand |
| High Light: | 2000r/Min Explosion Proof Blower,Foundry Explosion Proof Blower,5884pa medium pressure fan |
||

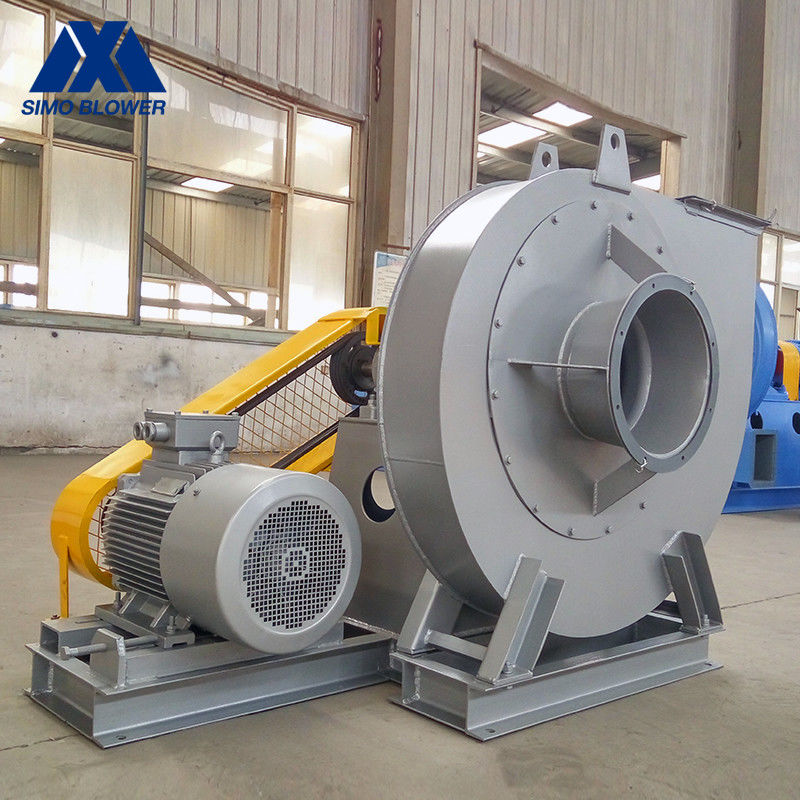

Medium Pressure Efficient Energy-Saving Foundry Explosion Proof Blower
Product Features
The 6-05 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.
It has excellent performance and can output high pressure.
It can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.
The fans are commonly used in large-scale industrial systems such as large dust removal systems, industrial desulfurization and denitrification, large industrial boiler systems, large industrial rotary kilns and calcining kiln systems, and mineral powder sintering (sintering machines) and so on.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-05 | 6C | 2000～2880 | 2079～5884 | 1598～4375 | 3～11 |
| 7C | 1680～2880 | 8012～5864 | 3655～6948 | 4～18.5 | |
| 8C | 1500～2880 | 2079～10474 | 2842～10371 | 4～37 |
Advantages
1. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
2. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.
3. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.
4. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.
5. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.
6. Test assembly after production is completed to ensure that there is no interference between the components.
7. Provide on-site arrangement and guidance services.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
