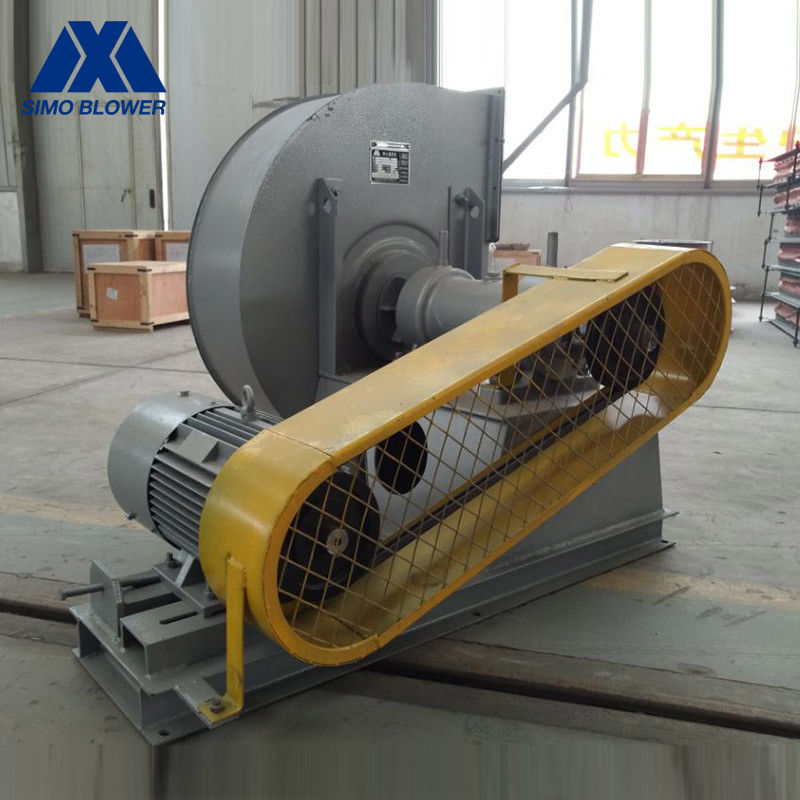

Heavy Duty Large Capacity Drying Explosion Proof Blower Centifugal Fan
Product Features
1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
2. The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
3. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.
Technical data
| series |
model |
Rotation Speed
(r/min) |
Total Pressure
(Pa) |
Air Capacity
(m³/h) |
Power
(kW) |
| 5-11 |
4C |
2900 |
990～1873 |
2750～5750 |
3～4 |
| 5C |
2620～2900 |
1265～2265 |
4840～9870 |
5.5～7.5 |
| 6C |
2620～2850 |
1824～3148 |
8370～16760 |
15～18.5 |
| 8C |
1820～1980 |
1726～2991 |
13780～27600 |
22～30 |
| 9C |
1740～1820 |
2000～3197 |
18780～36140 |
37 |
| 12C |
1450 |
3609～2471 |
37100～68250 |
75 |
| 12.4C |
1450 |
3903～2638 |
40940～75330 |
90 |
Advantages
1. For the materials of impeller and main shaft, for different working conditions and working speed, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel, make the impeller and main shaft to maintain reliable strength at high temperatures.
2. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
3. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
4. The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
5. After the production is completed, all products are tested for running and vibration values for reliable operation.
6. There are a variety of accessories to choose from.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
