Low Pressure 553pa Explosion Proof Blower Fan Air Purification Carbon Steel

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller: Dynamic Balanced Color: Customer's Requirement
Motor Type: Three Phase AC Motor Noise: Optional
Main Shaft: High-strength Carbon Structural Steel Bearing: SKF/FAG/By Your Demand
High Light:

553pa Explosion Proof Blower

,

30993m3/h Explosion Proof Blower

,

1450r/min low pressure air blower

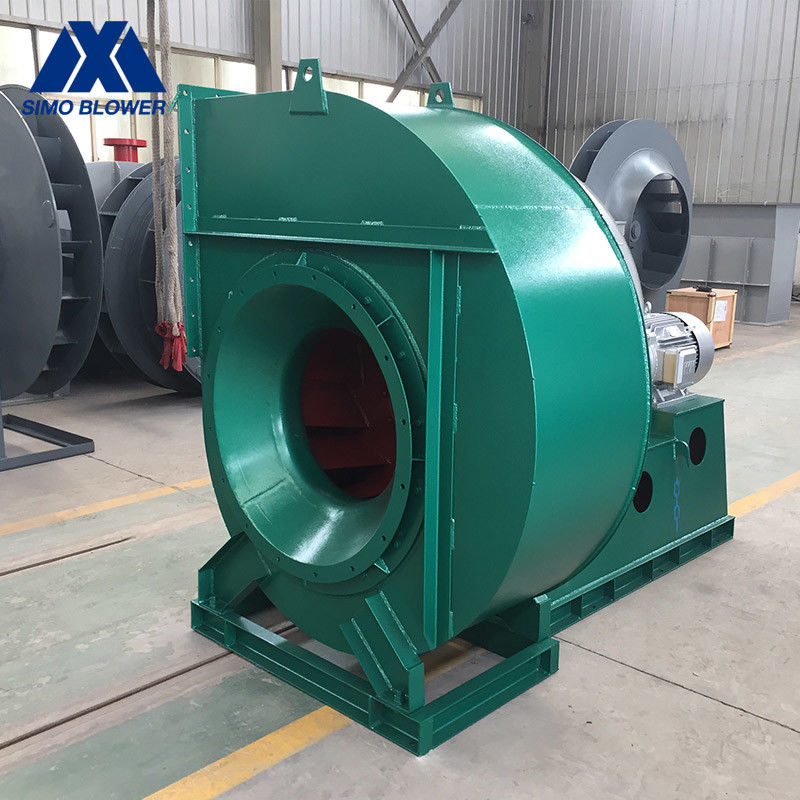

Carbon Steel Long Life Low Pressure Air Purification Explosion Proof Blower Fan



Product Features



The 4-10 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.

Suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 21041400 1615630993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Advantages



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.

6. After the production is completed, all products are tested for running and vibration values for reliable operation.



FAQ



1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A :      A:5-35 days.

3,Q : What’s your payment terms?

   A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
   A: 1 year.
5,Q: Is your company factory or trade company?

   A: We have our own factory, our type is factory +trade.
