| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-14 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Impeller: | Dynamic Balanced | Color: | Customer's Requirement |
|---|---|---|---|
| Motor Type: | Three Phase AC Motor | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
| Main Shaft: | High-strength Carbon Structural Steel | Bearing: | SKF/FAG/By Your Demand |
| High Light: | 1481pa Backward Curved Blower,30134m3/H Backward Curved Blower,Q235 backward inclined centrifugal fan |
||

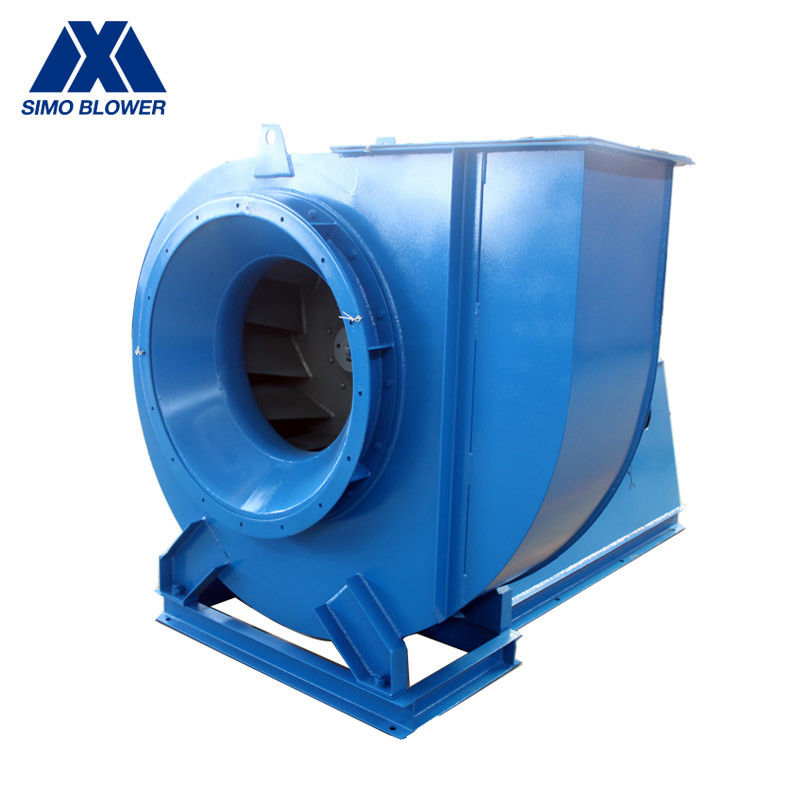

Q235 Coupling Driving Backward Explosion Proof Blower Centrifugal Fan
Product Features
G4-14 and Y4-14 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.
They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-14 | 8D | 1450 | 2177～1481 | 16985～30134 | 18.5 |
| 9D | 960 ~ 1450 | 824 ~ 2756 | 16011～42906 | 11 ~ 30 | |
| 10D | 730 ~ 1450 | 588 ~ 3403 | 16701 ～58856 | 7.5 ~ 55 | |
| 11.2D | 730 ~ 1450 | 736 ~ 4276 | 23464 ～82688 | 11 ~ 90 | |
| 12.5D | 730 ~ 1450 | 912 ~ 5325 | 32619 ～114952 | 22 ~ 160 | |
| 14D | 730 ~ 1450 | 1147 ~ 6678 | 45827～161499 | 37 ~ 315 | |
| 16D | 580 ~ 960 | 951 ~ 3825 | 54351～159606 | 45 ~ 160 |
Advantages
1. It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.
2. The fan blade placement angle is optimized, more wear-resistant and longer service life.
3. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.
4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
5. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
