Gas Delivery Nickel Iron Kiln Silencer 14122Pa Ventilation Blower Fan

Gas Delivery Nickel Iron Kiln Silencer 14122Pa Ventilation Blower Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-08
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 6-08
Impeller Test:
Ultrasonic Flaw Detection
Motor:
SIEMENS/ABB/By Your Demand
Bearing:
SKF/FAG/By Your Demand
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Lubrication:
Oil Bath Lubrication
System Type:
Single Inlet, Overhang Type
High Light:

High Light

High Light:

14122Pa Ventilation Blower Fan

,

Kiln Silencer Ventilation Blower Fan

,

14122Pa in line centrifugal fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Gas Delivery Nickel Iron Kiln Silencer Ventilation Blower Fan



Detail introduction



Medium requirements for 6-08 series fans: The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.

Medium temperature: The medium temperature of standard fans is not more than 80 °C, the V-belt driving type fan can transport media below 150 °C for a long time when it is added to the heat-dissipating wheel.

It is widely used in environmental dust removal, material transportation, and industrial equipment.



Product features



1. This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.

2. The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.

3. V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.

4. Equipped with tapered sleeve embedded pulley, easy to disassemble.

5. The collector is equipped with a mounting flange to facilitate the customer to use the pipeline.



Technical specifications



Series no. 6-08 series Feature selection
Normal anti-corrosion wear-resisting High temperature anti-explosion Remarks
Performance Impeller diameter 400-2800mm
Rotation speed ≤3000rpm
Pressure range 2284-14122Pa
Flow range 1381-261494㎥/h
Structure Blade type Backward, Straight, Aerofoil type
Impeller support SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
Lubrication method Oil bath lubrication, grease lubrication, lubrication oil station Can be specified
Cooling method Air cooling, Water cooling, Oil cooling Can be specified
Driven mode Direct driven, Coupling driven, Belt driven Can be specified
Gas composition Gas temperature Normal Customer request Customer request ≥250℃ Customer request
gas characteristic Clean gas Corrosive gas Particulate dust High temperature gas Flammable gas, explosive gas
System configuration Motor brand Chinese famous brand, ABB, Siemens, WEG etc Can be specified
Impeller High quality carbon steel FRP, Stainless steel, Rubber Lining Wear-resistant layer or wear-resistant liner, ceramic patch High temperature high quality alloy steel FRP, Aluminum alloy Can be specified
Air inlet cone High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Casing High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Air damper High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Main shaft High strength carbon steel, Alloy structural steel Can be specified
Bearing ZWZ, SKF, FAG, NSK Can be specified
Bearing housing Cast iron
Foundation bolts GB799-1988
Option parts System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.



Centrifugal Fan Of SIMO Blower



SIMO Blower —— the centrifugal fan manufacturer,whom has stable product performance, high quality, reliable quality, timely supply and good reputation.



SIMO Blower has strong technical force, complete testing and experiment equipment, advanced quality inspection methods, sophisticated manufacturing equipment, complete professional fan processing, dynamic balance testing and special molding abrasive tools. The products have achieved standardization and scale to ensure that the performance and quality of the fan meets the requirements of national standards.



The appearance of the product has been carefully polished, the surface is smooth, shiny and bright, giving people a comfortable feeling. Adopting advanced design and manufacturing technology in production technology, each process has undergone strict testing and passed CE certification.

Intimate humanized service: SIMO provides one-to-one personality design; Make a plan first, and then manufacture after customer satisfaction, so as to fully protect the interests of customers.



Induced draft fan, high-quality large flow centrifugal fan, fan with more complete models, Choose SIMO Blower with more reasonable price!



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

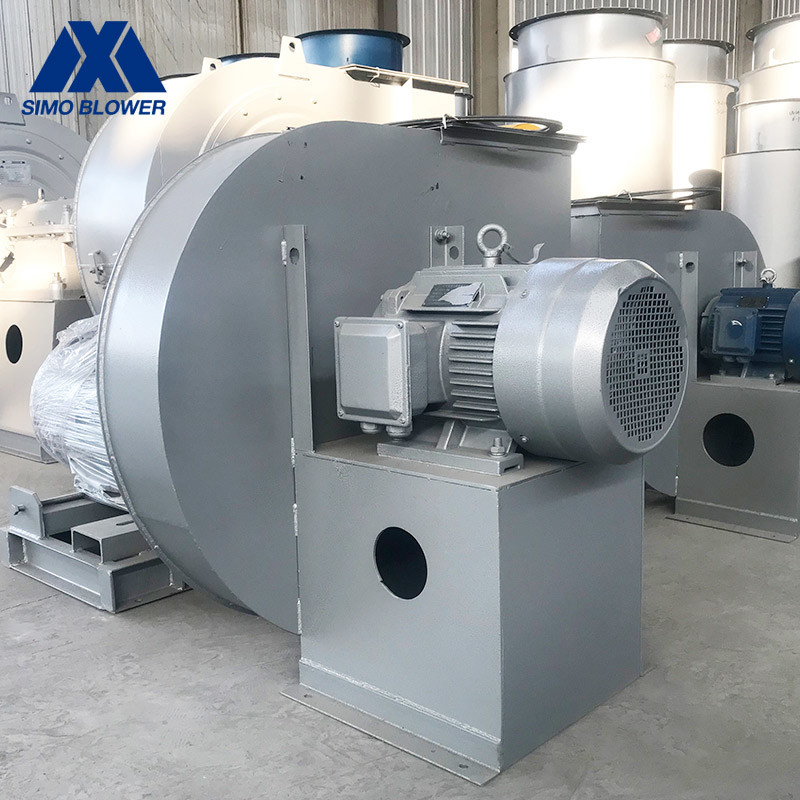

Gas Delivery Nickel Iron Kiln Silencer 14122Pa Ventilation Blower Fan 0
