| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 7-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Color: | Customer's Requirement | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
|---|---|---|---|
| Motor: | SIEMENS/ABB/By Your Demand | Main Shaft: | High-strength Carbon Structural Steel |
| Lubrication: | Oil Bath Lubrication | Medium: | Clean Air/Dusty Air |
| High Light: | 262503m3/H Centrifugal Exhaust Fan Blower,Impeller Hub Centrifugal Exhaust Fan Blower,262503m3/H inline centrifugal duct fan |
||

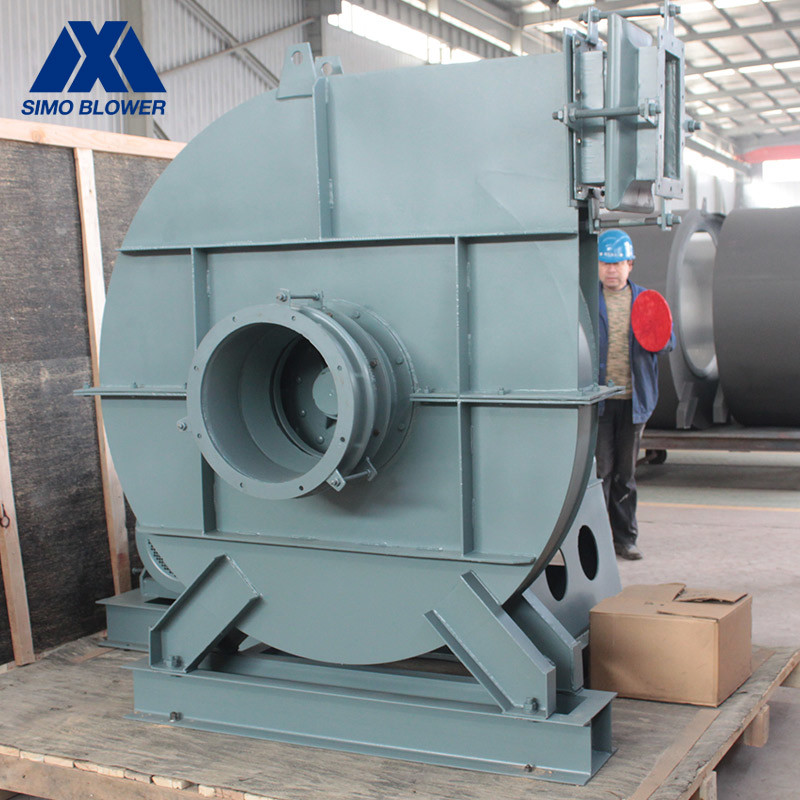

Cement Mill Antiwear Impeller Hub Centrifugal Ventilation Exhaust Fan
Introduction
The 7-03 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company.
It has the highest efficiency of 88.3%.
It belongs to small flow and medium pressure series.
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
Application
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
Technical data
| Series no. | 7-03 series | Feature selection | |||||||
| Normal | anti-corrosion | wear-resisting | High temperature | anti- explosion | Remarks | ||||
| Performance | Impeller diameter | 400-3500mm | |||||||
| Rotation speed | ≤3000rpm | ||||||||
| Pressure range | 3070-26193Pa | ||||||||
| Flow range | 1072-262503㎥/h | ||||||||
| Structure | Blade type | Backward, Straight, Aerofoil type | |||||||
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | ||||||||
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified | |||||||
| Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified | |||||||
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified | |||||||
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250℃ | Customer request | |||
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | ||||
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified | ||||||
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified | |||
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
| Main shaft | High strength carbon steel, Alloy structural steel | Can be specified | |||||||
| Bearing | ZWZ, SKF, FAG, NSK | Can be specified | |||||||
| Bearing housing | Cast iron | ||||||||
| Foundation bolts | GB799-1988 | ||||||||
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | ||||||||
Advantages and Features
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
