| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-03 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Feature: | High Performance | Bearing Type: | Rolling Bearing |
|---|---|---|---|
| Material: | Carbon Steel/Alloy Steel/Stainless Steel | Lubrication: | Oil Bath Lubrication |
| Impeller: | Dynamic Balanced | Warranty: | 1 Year |
| High Light: | 4325pa Induced Draft Blower,V Belt Driven Induced Draft Blower,4325pa id fan blower |
||

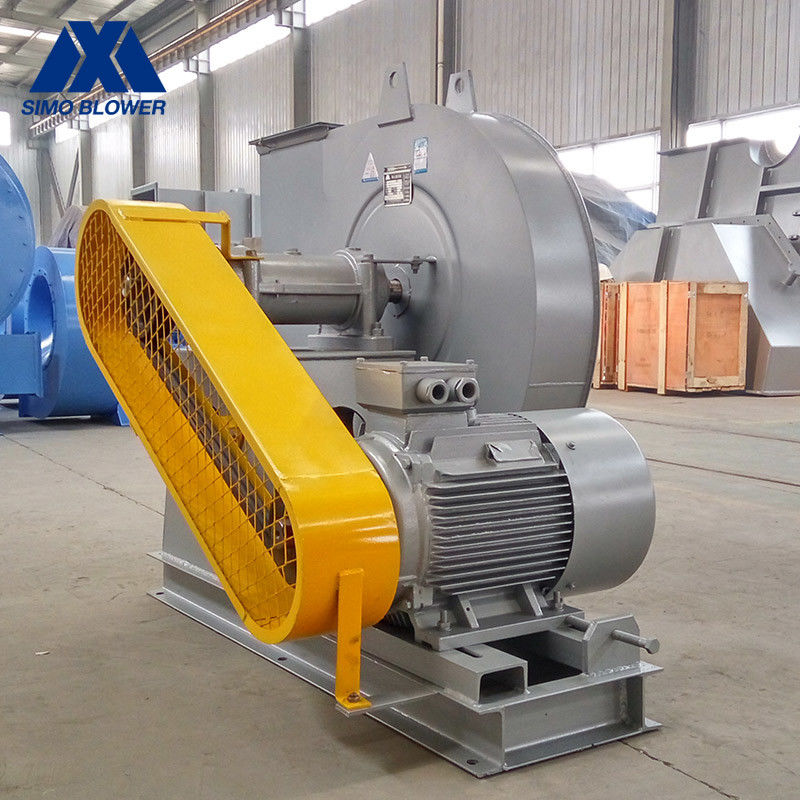

Heavy Duty V-Belt Driven Cooling Induced Draft Fan Centrifugal Blower
Introduction Of Centrifugal Fan
This series fans have high pressure coefficient, low peripheral speed, low noise, flat performance curve and wide area of high efficiency.
They are used in forging furnaces and high pressure forced ventilation and are widely used to transport materials and air. The maximum temperature should not exceed 250 degrees Celsius.
Suitable for flow and dust removal ventilation systems in high pressure heads.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 6-03 | 6C | 1800～2400 | 1785～4325 | 2403～6830 | 4～11 |
| 7C | 1500～2020 | 187～4178 | 3180～9129 | 5.5～15 | |
| 9C | 1645～1800 | 3354～5482 | 7420～17300 | 22～37 |
Product Advantages
1. It can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.
2. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.
3. Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance. For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.
4. The material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature &high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft at high temperature still maintain reliable strength.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
