Q235 Medium Pressure Heat Dissipation Induced Draft Fan 121114m3/H

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Voltage: 380V/415V/440V/660V/6KV/10KV Bearing Type: Rolling Bearing
Material: Carbon Steel/Alloy Steel/Stainless Steel Bearing: SKF/FAG/By Your Demand
Impeller: Dynamic Balanced Warranty: 1 Year
High Light:

Heat Dissipation Induced Draft Fan

,

121114m3/H Induced Draft Fan

,

121114m3/H boiler draft fan

Q235 Medium Pressure Heat Dissipation Centrifugal Blower Induced Draft Fan



Introduction Of Centrifugal Fan



It can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.

The fans are commonly used in large-scale industrial systems such as large dust removal systems, industrial desulfurization and denitrification, large industrial boiler systems, large industrial rotary kilns and calcining kiln systems, and mineral powder sintering (sintering machines) and so on.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-11 14D 1450 54357086 2288941542 90110
15D 1450 62408134 2815351095 110160
16D 1450 70999255 3416762011 160220
17D 1450 801410448 4089274379 220280
18D 1450 898611713 4864888292 280400
19D 1450 1001213051 57215103840 400500
20D 1450 1109314461 66733121114 450630



Product Advantages



1. It can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.

2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

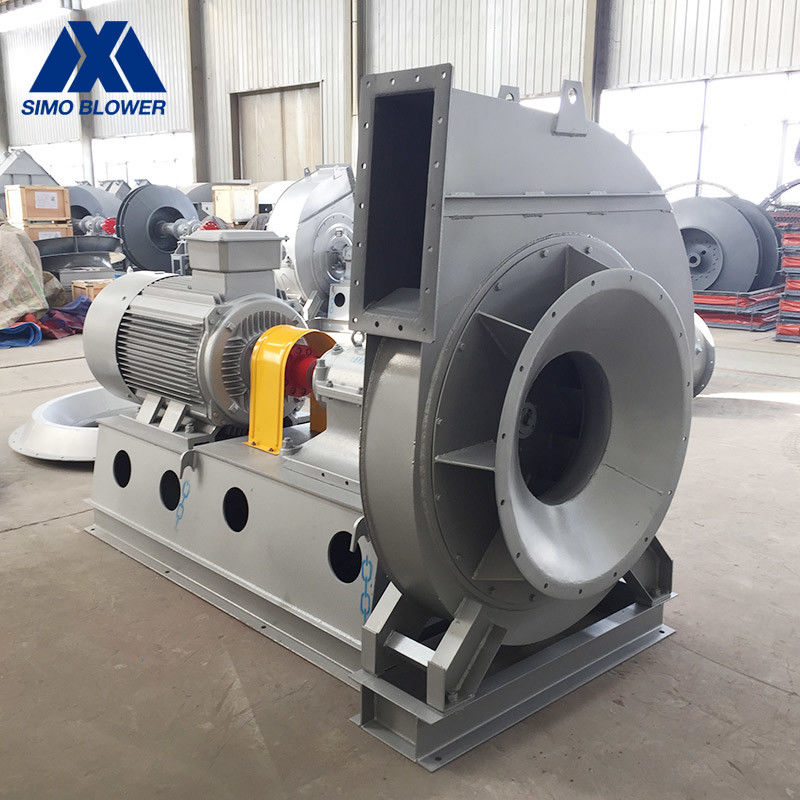

Q235 Medium Pressure Heat Dissipation Induced Draft Fan 121114m3/H 0
