| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 5-12 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Impeller: | Dynamic Balanced | Color: | Customer's Requirement |
|---|---|---|---|
| Warranty: | 1 Year | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
| Main Shaft: | High-strength Carbon Structural Steel | Motor: | SIEMENS/ABB/By Your Demand |
| High Light: | 2819pa Centrifugal Cooling Blower,Antifraying Centrifugal Cooling Blower,2819pa pressure centrifugal fan |
||

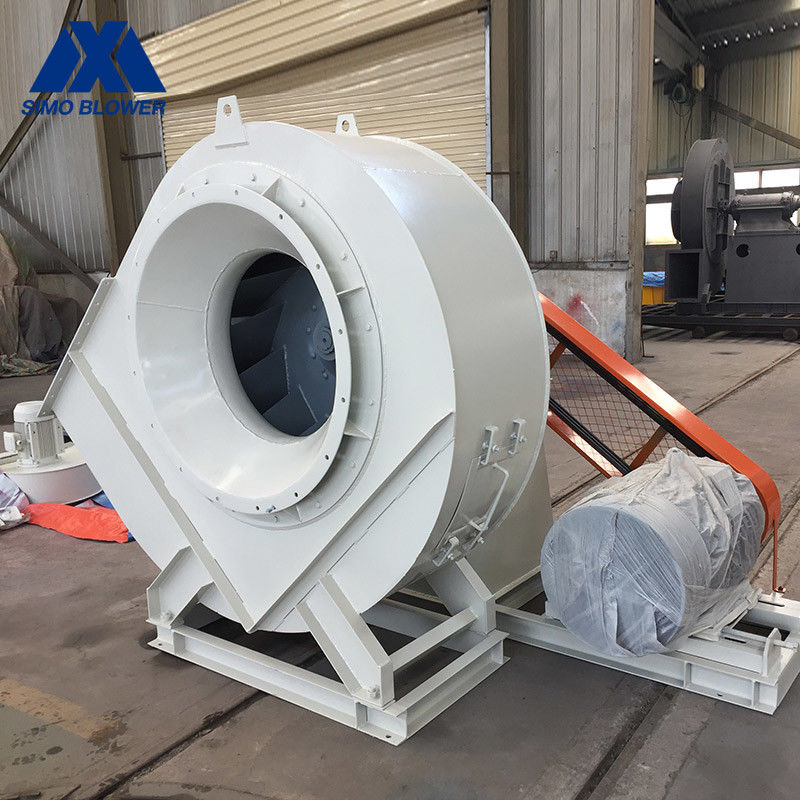

Medium Pressure Antifraying Explosion Proof Cooling Centrifugal Blower
Product Features
It is boiler induced draft fan with a total internal pressure efficiency of 90.5% specially designed to be suitable for various coal quality and equipped with a smoke-and-dust removal device (1~20 tons/hour).
This type of fan is currently used in the boiler industry. The air volume of the induced draft fan and the difference in wind pressure are relatively large, in order to adapt to the above situation, considering the practicability of the fan, in addition to the 20-ton boiler ID fan need large power coupling direct transmission, the other uses the triangular belt type transmission.
This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.
It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.
If it contains a lot of impurities, it also can be used, but it will shorten the service life.
The maximum operating temperature of the induced draft fan must not exceed 250°C.
The performance of the fan is expressed by parameters such as fan flow, full pressure, spindle speed, shaft power and efficiency.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-12 | 4C | 2500～3550 | 742～2221 | 2065～5564 | 2.2～5.5 |
| 5C | 2240～3150 | 964～2819 | 3772～9851 | 4～11 | |
| 6.3C | 2000～2800 | 1221～3545 | 6737～17516 | 7.5～22 | |
| 8C | 1400～2000 | 1100～3323 | 9656～25619 | 11～30 | |
| 10C | 1250～1800 | 1419～4483 | 15451～44634 | 22～75 | |
| 12.5C | 1000～1400 | 2145～4234 | 24143～67803 | 37～110 |
Advantages
1. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
2. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
3. The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.
4. Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
5. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
