| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-09 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Voltage: | 380V/415V/440V/660V/6KV/10KV | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | Main Shaft: | High-strength Carbon Structural Steel |
| Impeller Test: | Ultrasonic Flaw Detection | Impeller Support: | SWSI (Single Width, Single Inlet), Impeller Overhung |
| High Light: | 1800r/Min Power Plant Fan,2406pa Power Plant Fan,1800r/Min centrifugal air blower |
||

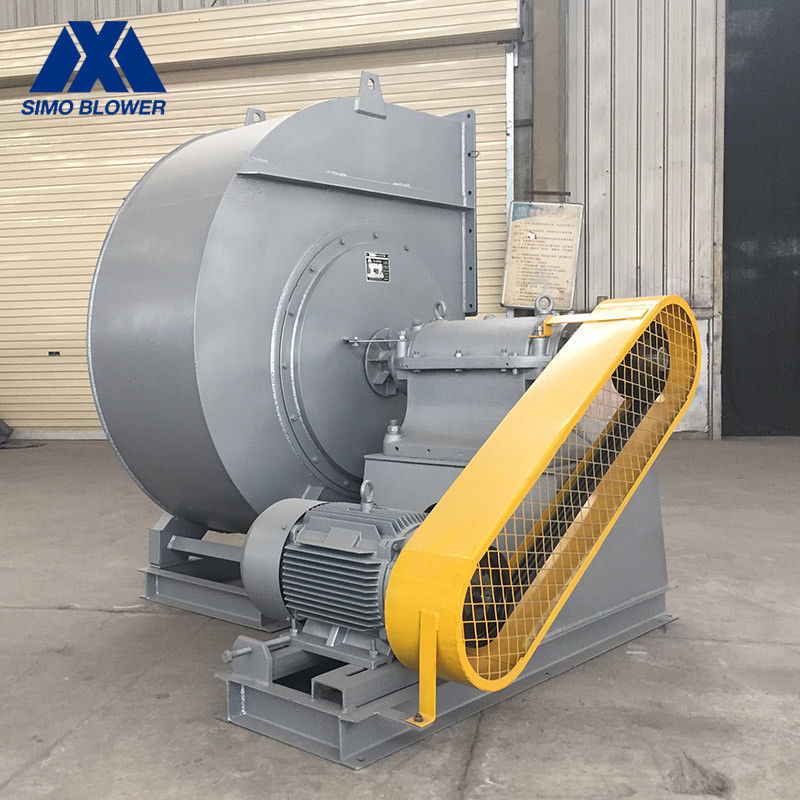

Alloy Steel High Temperature Furnace Power Plant Centrifugal Fan
introduction
These series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.
They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.
Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.
In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-09 | 7C | 710 ~ 1800 | 233 ~ 2406 | 4939～24038 | 1.5 ~ 15 |
| 8C | 630 ~ 1800 | 240 ~ 3150 | 6542～ 35882 | 1.5 ~ 37 | |
| 10C | 520 ~ 1300 | 258 ~ 2551 | 10931～50807 | 3 ~ 37 | |
| 12C | 420 ~ 1170 | 242 ~ 2980 | 15256 ~ 79015 | 4 ~ 75 | |
| 1040 | 2349～1493 | 37778～70236 | 55 |
Product Features
1. It can work stably at a high medium temperature, and can output a large gas flow with low noise when the pressure requirement is met.
2. The fan blade placement angle is optimized, more wear-resistant and longer service life.
3. The air damper can be used to flexibly adjust the pressure and flow of the fan during operation. It is also possible to select a variable frequency motor, with adjust the pressure and flow of the fan by changing the speed.
4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel under different working conditions temperature and working speed, so that the impeller and main shaft still maintains a reliable strength at high temperature.
5. Fan systems with impeller diameters less than 1400 mm at normal temperature do not require additional bearing cooling devices, reducing users’ investment and maintenance.
6. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
7. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
8. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
9. There are a variety of accessories to choose from.
Application
1. As a device with good performance, centrifugal fans are now widely used for ventilation, dust exhaust and cooling in factories, mines, tunnels, cooling towers, vehicles, ships and buildings. The role of centrifugal fans is powerful. When users choose to use them, they also need to start from the characteristics of centrifugal fans and use them in a scientific way to ensure that the fans bring greater benefits to themselves.
2. In the factory, the workshops, warehouses and other departments are equipped with centrifugal fans, which play a role in ventilation, ensure the fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
