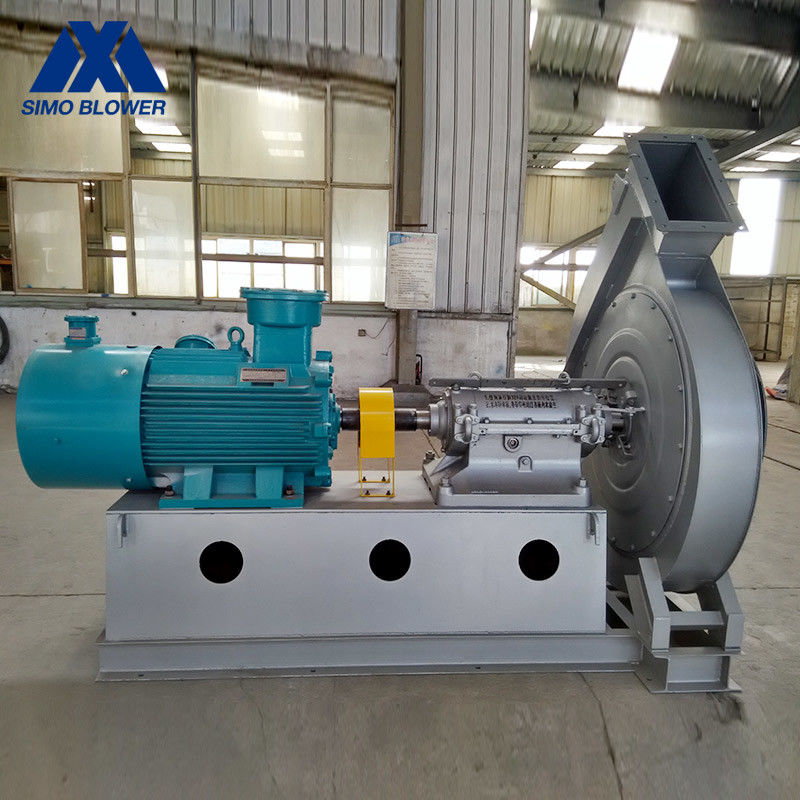

Steam Boiler Anti Explosion 5435pa Induced Draft Fan Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Material: Carbon Steel/Alloy Steel/Stainless Steel Bearing Type: Rolling Bearing
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Drivetrain: Direct/Coupling Driven/V-belt Driven
Main Shaft: High-strength Carbon Structural Steel System Type: Single Inlet, Overhang Type
High Light:

5435pa Induced Draft Fan

,

22889m3/h Induced Draft Fan

,

5435pa boiler draft fan

Steam Boiler Anti-Explosion Induced Draft Fan Blower Machine



Application



1. As a device with good performance, centrifugal fans are now widely used for ventilation, dust exhaust and cooling in factories, mines, tunnels, cooling towers, vehicles, ships and buildings. The role of centrifugal fans is powerful. When users choose to use them, they also need to start from the characteristics of centrifugal fans and use them in a scientific way to ensure that the fans bring greater benefits to themselves.



2. In the factory, the workshops, warehouses and other departments are equipped with centrifugal fans, which play a role in ventilation, ensure the fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.



3. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.



4. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.



5. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



6. Centrifugal fans are widely used in boilers and industrial furnaces. They mainly play the role of ventilation and air induction. On the one hand, they ensure the environment of the boiler room or industrial kiln. On the other hand, they allow the replacement of oxygen-enriched air, which makes the firepower of the boiler or kiln more fierce and saves coal to a certain extent. Wait for power resources to reduce enterprise production costs.



Introduction Of Centrifugal Fan



Centrifugal fan is a kind of machinery that relies on input mechanical energy to increase gas pressure and discharge gas.



The basic composition of a centrifugal fan: a rotating impeller and a volute casing. The function of the rotating impeller is to obtain energy from the air; the function of the volute is to collect air and effectively convert the dynamic pressure of the air into static pressure.



When the centrifugal fan is energized and rotated, it drives the impeller to rotate, driving the gas to continuously flow in and out, and generate air volume and voltage. With the shape of the impeller blades, the air volume and pressure generated by the centrifugal fan are also different.



All impellers are produced in moulds and are verified by a precision dynamic balance machine at high speed. They have the advantages of small size, high efficiency, large air volume, low vibration, low noise, superior performance, and convenient installation and debugging.



Technical data



series model

Induced Draft Fan

Rotation Speed
(r/min)

Induced Draft Fan

Total Pressure
(Pa)

Induced Draft Fan

Air Capacity
(m³/h)

Induced Draft Fan

Power
(kW)

6-11 14D 1450 54357086 2288941542 90110
15D 1450 62408134 2815351095 110160
16D 1450 70999255 3416762011 160220
17D 1450 801410448 4089274379 220280
18D 1450 898611713 4864888292 280400
19D 1450 1001213051 57215103840 400500
20D 1450 1109314461 66733121114 450630



SIMO Blower specializes in manufacturing centrifugal fans with high quality and affordable prices, which are loved by new and old customers.



Product Advantages



1. The impeller of centrifugal fan is designed to be backward inclined, which has no friction in operation, very low noise and is not easy to be stained with dust, so it is very convenient to maintain.

2. Good ventilation effect: Centrifugal fan is especially suitable for pipe exhaust or air supply, and can be used in places where there is no corrosive, flammable and explosive gas, which can achieve good ventilation effect.

3. Strong corrosion resistance: the surface of centrifugal fan is sprayed, which has strong oxidation resistance and is not easy to rust. The casing and impeller are made of high-quality steel plates, which makes the centrifugal fan very strong and durable.

4. SIMO Blower uses high-quality raw materials, thick materials, or stainless steel plates,all formed at one time.





FAQ



1. What parameters need to be provided when you design the Steam Boiler Anti-Explosion Induced Draft Fan Blower Machine ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
