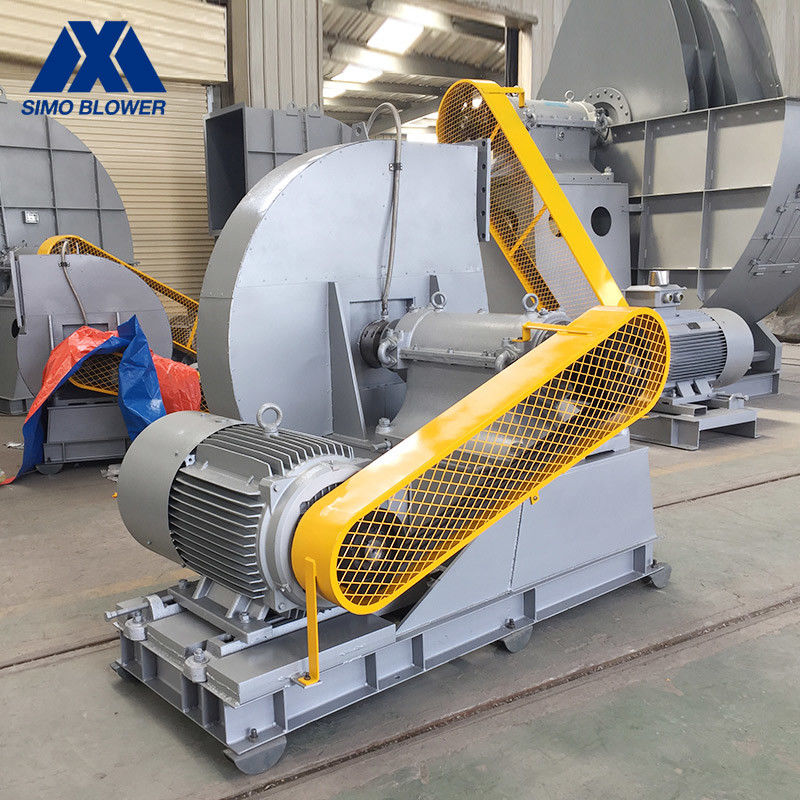

Antiwear Boiler Induced Draft Kilns 61297m3/h Id Fan Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-03
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Voltage: 380V/415V/440V/660V/6KV/10KV Bearing Type: Rolling Bearing
Material: Carbon Steel/Alloy Steel/Stainless Steel Drivetrain: Direct/Coupling Driven/V-belt Driven
Motor: SIEMENS/ABB/By Your Demand Bearing Cooling: Air Cooling Or Circulating Water Cooling
High Light:

61297m3/H Id Fan Blower

,

10587pa Id Fan Blower

,

61297m3/H induced draft fan in thermal power plant

Antiwear Boiler Induced Draft Kilns Cooling Centrifugal Fan



Introduction Of Centrifugal Fan



When the fan is working, the airflow enters the blade space from the fan axially, and then rotates with the impeller under the drive of the impeller; on the other hand, it increases energy under the action of inertia, leaves the impeller along the radius, and does work by the centrifugal force generated. The fan is called a centrifugal fan.



The main components of the centrifugal fan are: impeller, casing, coupling and shaft. The impeller is the main work component that generates wind pressure and transfers energy; the casing is mainly used to introduce gas and exhaust gas, and at the same time convert part of the kinetic energy of the gas into pressure energy; the coupling is used to connect the motor and the fan to transmit torque;the shaft is installed with the motor through a coupling and the impeller is fixed.



The centrifugal fan is mainly composed of an impeller and a casing. The impeller of the small fan is directly mounted on the motor, and the large fan is connected with the motor through a coupling or a pulley.

Centrifugal fans generally use single-side air intake and use single-stage impellers; those with large flow can be air-intaken on both sides and use two back-to-back impellers, which are also called double-suction centrifugal fans.



Technical data



Centrifugal Fan PARAMETERS
Centrifugal Fan
Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan
Performance
Impeller diameter 400~1800

mm

Speed of mainshaft

≤4000

rpm
Pressure range 1581~10587 Pa
Flow range

90.6~61297

m3/h
Centrifugal Fan
Structure
Blade Forward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Direct, Coupling, V-belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.



Application



1. As a device with good performance, centrifugal fans are now widely used for ventilation, dust exhaust and cooling in factories, mines, tunnels, cooling towers, vehicles, ships and buildings. The role of centrifugal fans is powerful. When users choose to use them, they also need to start from the characteristics of centrifugal fans and use them in a scientific way to ensure that the fans bring greater benefits to themselves.



2. In the factory, the workshops, warehouses and other departments are equipped with centrifugal fans, which play a role in ventilation, ensure the fresh air in the workshop, and help to purify the working environment and the health of employees. At the same time, the factory warehouse is equipped with centrifugal fans to dry the air to ensure that the mechanical equipment or other industrial products maintain the original quality.



3. Install centrifugal fans in mines and tunnels to re-enter fresh air and exhaust dirty air to ensure air circulation in the mines and tunnels.Centrifugal fans can help dust discharge, ensure air transparency in mines and tunnels, and ensure the health of workers in mines and tunnels.



4. A centrifugal fan is installed in the cooling tower, which not only plays the role of ventilation and ensures the normal operation of the cooling tower, but also plays a positive role in improving the cooling effect of the cooling tower by the large flow wind generated by the centrifugal fan.



5. Main ventilator in coal mine is an important equipment to ensure normal ventilation in underground mine, which not only affects the production capacity of coal mine, but also is very important to the safety of mining industry.



6. Centrifugal fans are widely used in boilers and industrial furnaces. They mainly play the role of ventilation and air induction. On the one hand, they ensure the environment of the boiler room or industrial kiln. On the other hand, they allow the replacement of oxygen-enriched air, which makes the firepower of the boiler or kiln more fierce and saves coal to a certain extent. Wait for power resources to reduce enterprise production costs.



Product Advantages



1. The impeller of centrifugal fan is designed to be backward inclined, which has no friction in operation, very low noise and is not easy to be stained with dust, so it is very convenient to maintain.

2. Good ventilation effect: Centrifugal fan is especially suitable for pipe exhaust or air supply, and can be used in places where there is no corrosive, flammable and explosive gas, which can achieve good ventilation effect.

3. Strong corrosion resistance: the surface of centrifugal fan is sprayed, which has strong oxidation resistance and is not easy to rust. The casing and impeller are made of high-quality steel plates, which makes the centrifugal fan very strong and durable.

4. SIMO Blower uses high-quality raw materials, thick materials, or stainless steel plates,all formed at one time.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
