High Air Flow Heavy Duty Abrasion Proof 380V Induced Draught Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Power Source: Three Phase AC Motor Motor: SIEMENS/ABB/By Your Demand
Impeller Test: Ultrasonic Flaw Detection Main Shaft: High-strength Carbon Structural Steel
Voltage: 380V/415V/440V/660V/6KV/10KV Current Type: AC
High Light:

380V Induced Draught Fan

,

Abrasion Proof Induced Draught Fan

,

380V induced draft blower

High Air Flow Heavy Duty Abrasion Proof Drying Induced Draft Fan



Introduction:



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.

In addition to the industrial system, it is also frequently used in agriculture and civil applications and the most versatile range of centrifugal fans.



Product features:



1. The impeller is annealed to eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

2. The weld of the impeller and the main shaft are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

3. The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

4. There are a variety of accessories to choose from.



Technical specifications:



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8C 1450 2104~1400 16156~30993 18.55
9C 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10C 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11C 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12C 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14C 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16C 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18C 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20C 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22C 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25C 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28C 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5C 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


FAQ



1,Q: What’s the MOQ of your company?

A: The MOQ is 1set.

2,Q: How long is the delivery time?

A : A:5-35 days.

3,Q : What’s your payment terms?

A : T/T, L/C, or Negotiable.

4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?

A: We have our own factory, our type is factory +trade.

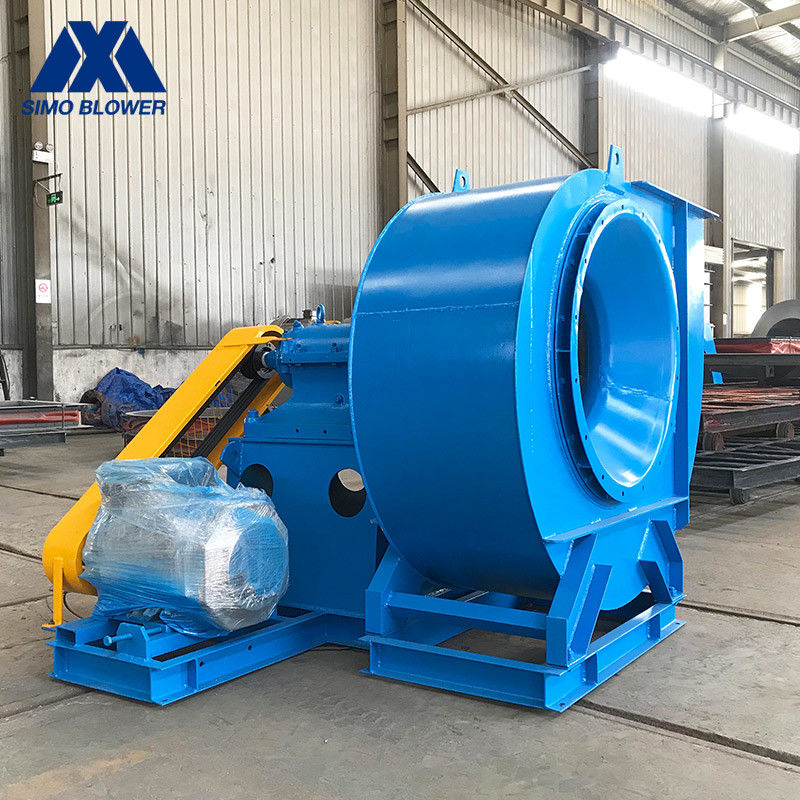

High Air Flow Heavy Duty Abrasion Proof 380V Induced Draught Fan 0
